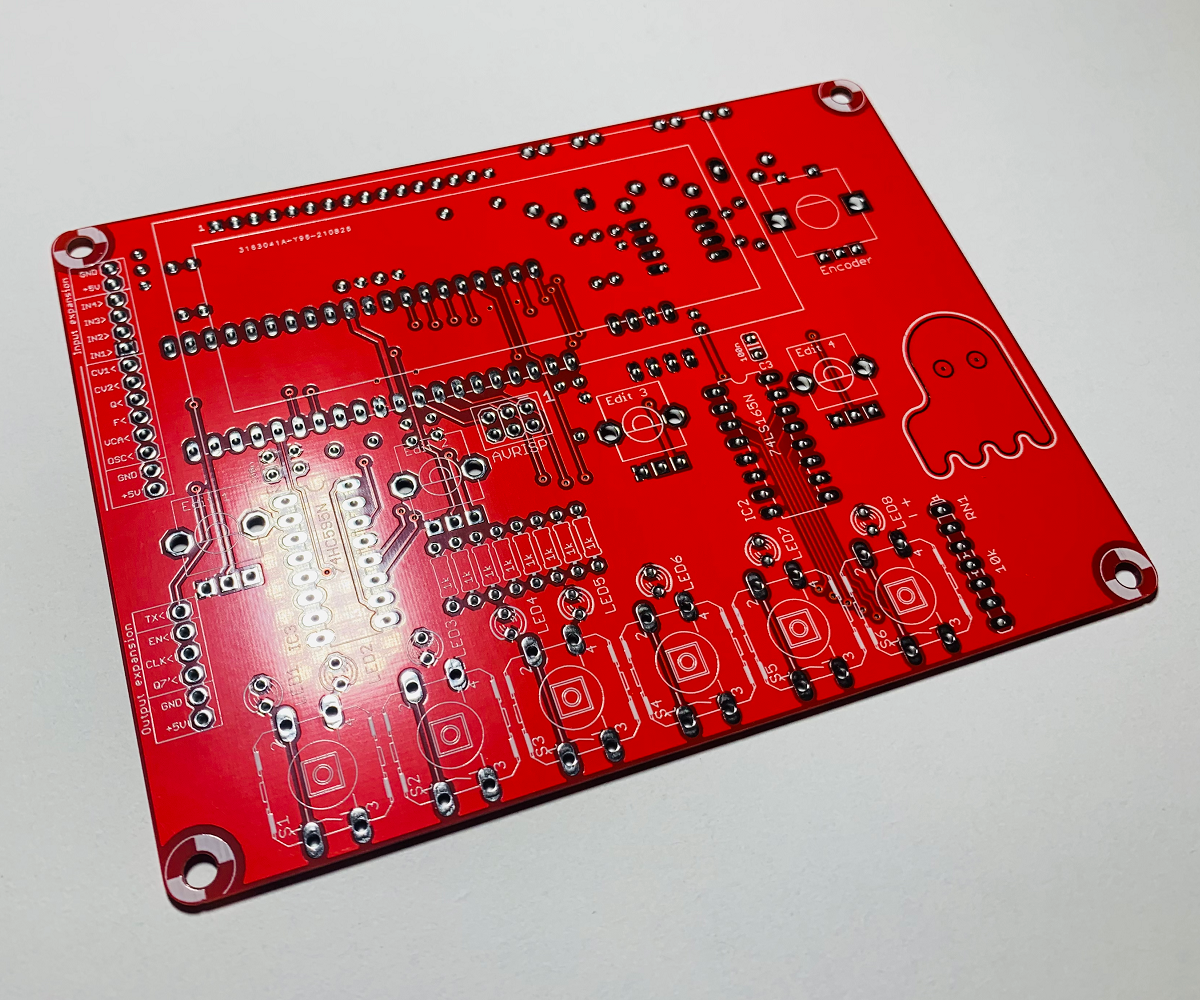

Shruthi control board

Shruthi control board

Last and final revision of the Shruthi control board.
More info:

https://pichenettes.github.io/mutable-instruments-diy-archive/shruthi/digital/

1.6 mm thick, double sided, red
base material FR4-Standard TG 135-140
surface finish HASL
part values are silkscreened

no parts, just the PCB

Limited stock!
