4U006 - VCDO

4U006 - VCDO

Regular price €10,00 EUR
Regular price Sale price €10,00 EUR
Sale Sold out
Tax included.

4U006 - VCDO

The VCDO is based around the Electruc Druic VCDO chip - the schematic is an adaptation of the datasheet schematic, with some minor modifications.
The VCDO offers amazing features, like (from the chips datasheet):

- exponential frequency response with no exponential convertor
- 3-10 octave note range from 8.18Hz to 8372Hz3
- main oscillator with 16 waveforms arranged as a wavetable
- sub oscillator with 8 waveforms at four octaves
- bitcrushing effect
- glide/portamento
- 8-bit, 62.5KHz sample output rate
- easy interfacing to control voltage mixers

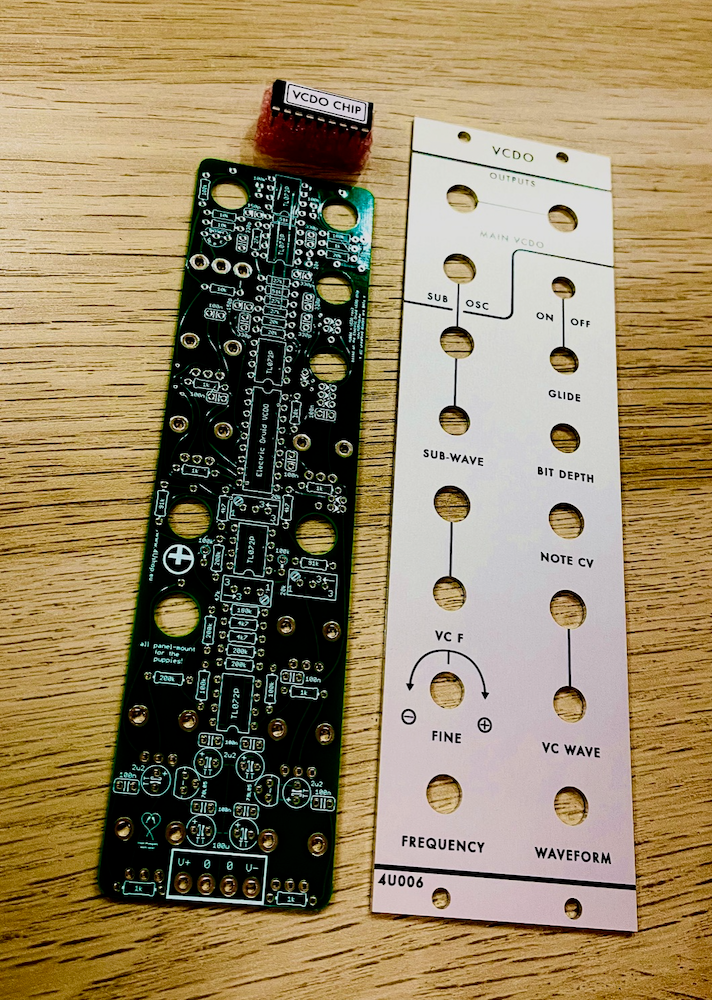

1.6 mm thick, double sided, green
base material FR4-Standard TG 135-140
surface finish HASL
part values are silkscreened

chip is available directly from Electric Druid or from vendors (BanzaiMusic)
no parts, just the PCB - LW format panel is available

Documentation (schematic, bom, wiring)
VCDO datasheet
