4U007 - CVPal

4U007 - CVPal

Regular price €30,00 EUR
Regular price Sale price €30,00 EUR
Sale Sold out
Tax included.

4U007 - CVPal

4U adaptation of the MI CVpal modul, with extra Gate To Trigger converters.
The 4U007 set comes with a pre-programmed Attiny chip

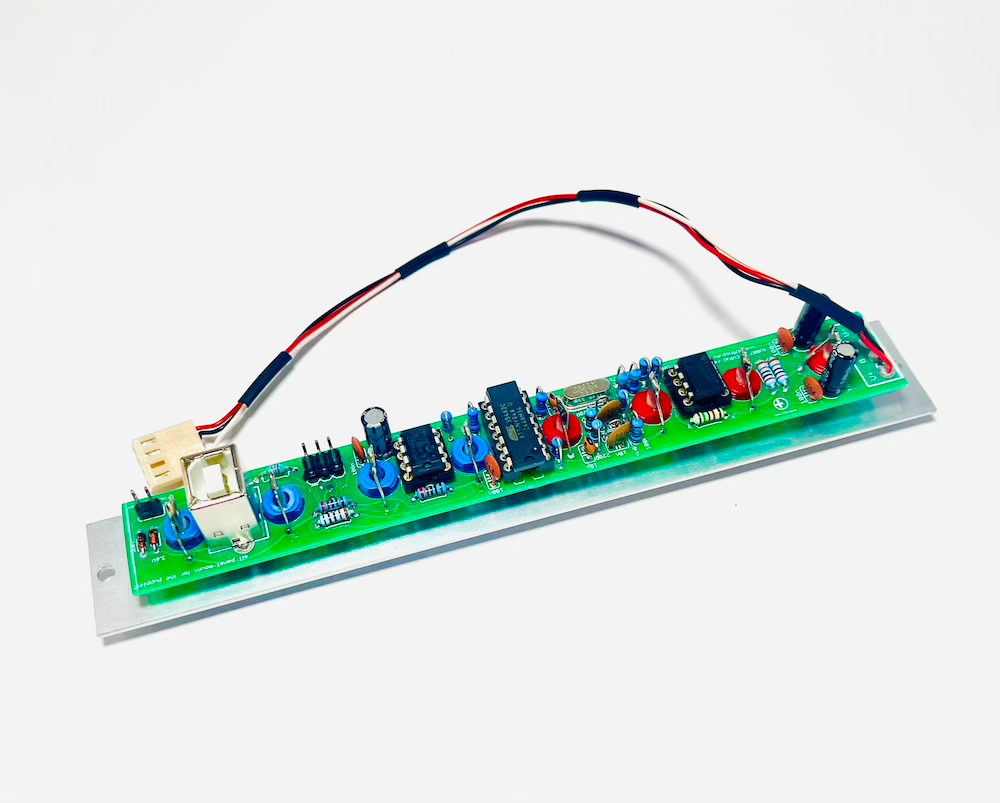

PCB:
1.6 mm thick, double sided, green
base material FR4-Standard TG 135-140
surface finish HASL
part values are silkscreened

Front panel
1.6 mm thick aluminium
1" x 175 mm
mounting holes - 3.5 mm, follows the LW specification (top and bottom)
no parts, just the PCB - LW format panel is available

Documentation (schematic, bom)
