4U adaptation of the Yusynth Arp VCF; this version is 100% identical to the original - all credit goes to Yves Usson.
For more information about the circuit, please visit his amazingly detailed website.

Yusynth Arp VCF

1.6 mm thick, double sided, green
base material FR4-Standard TG 135-140
surface finish HASL
part values are silkscreened

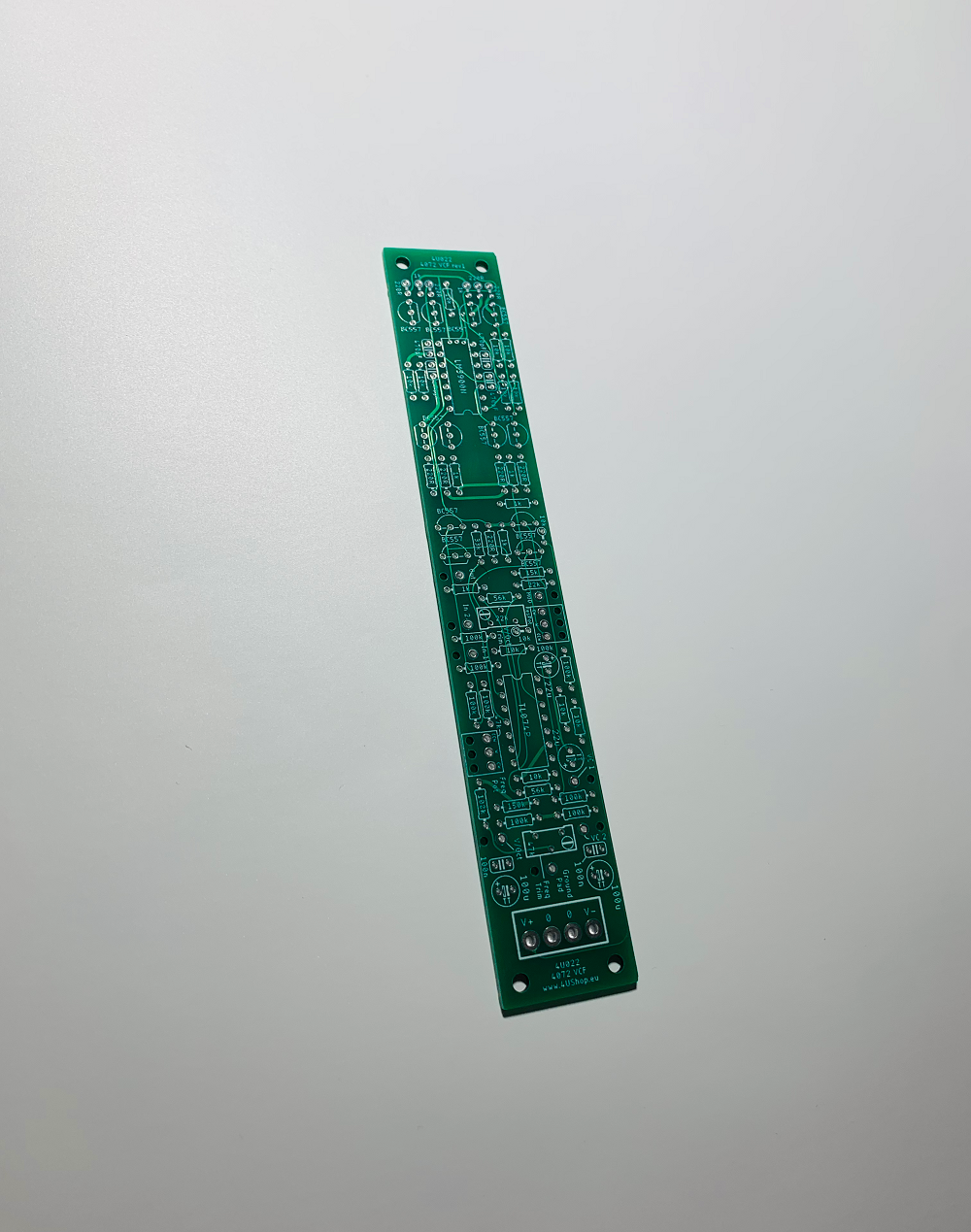

no parts, just the PCB - LW format panel is available

Documentation (schematic, bom, wiring)
