4U024 - VCDelay

4U024 - VCDelay

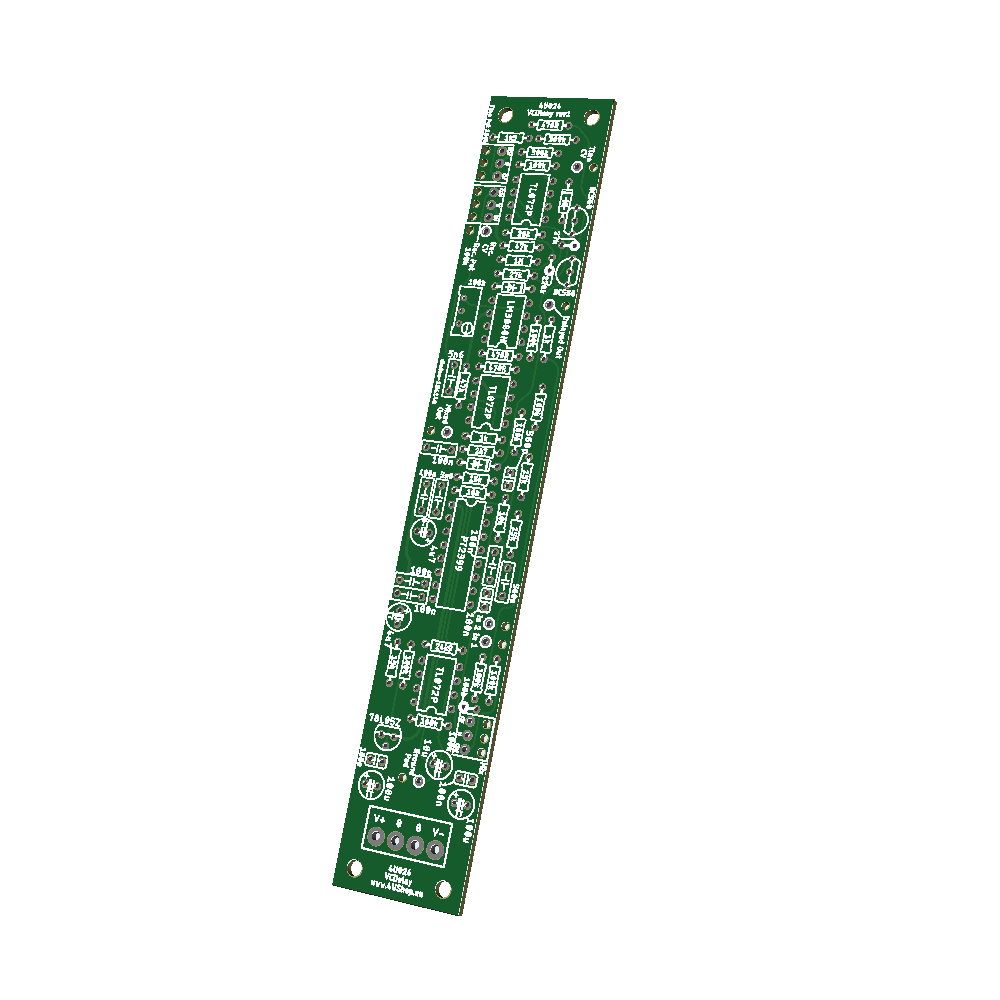

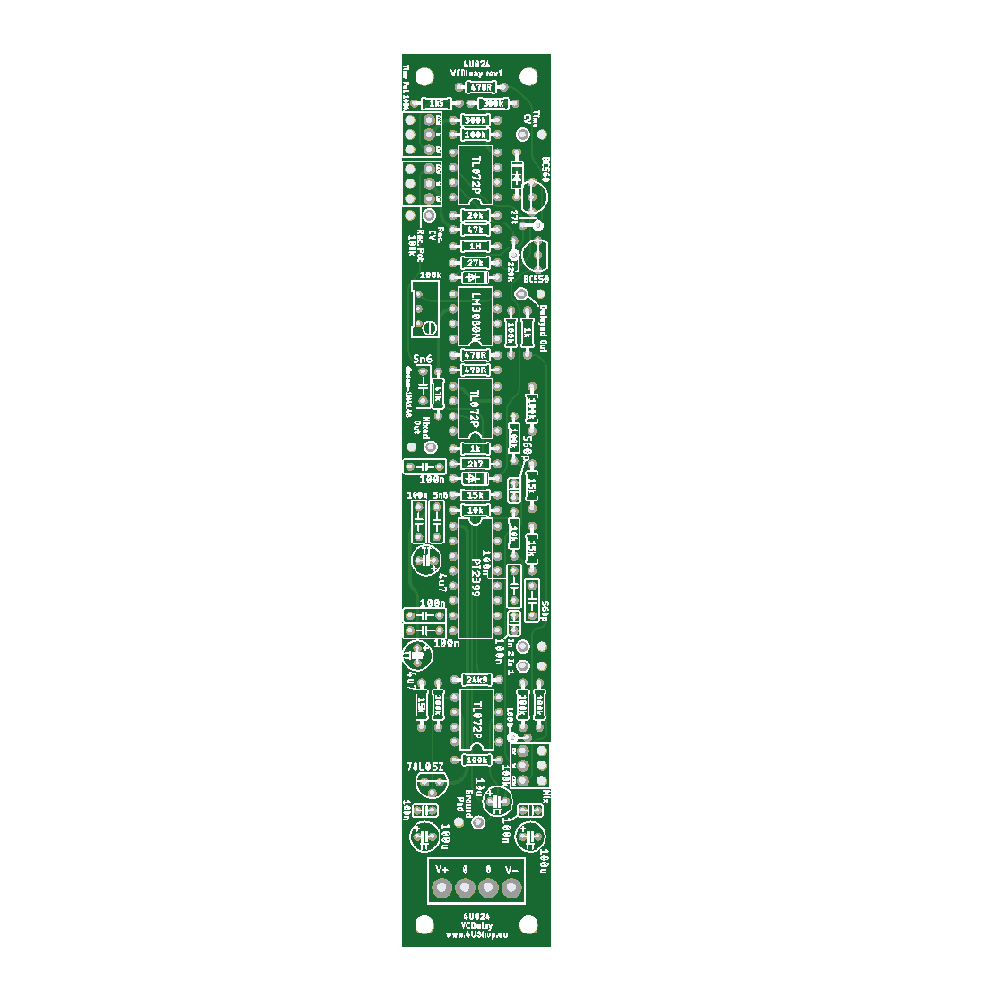

4U adaptation of an interesting, PT2399 based VC Delay.
The original based on a Scott Bernardi circuit.

Original Electro-Music Forum thread

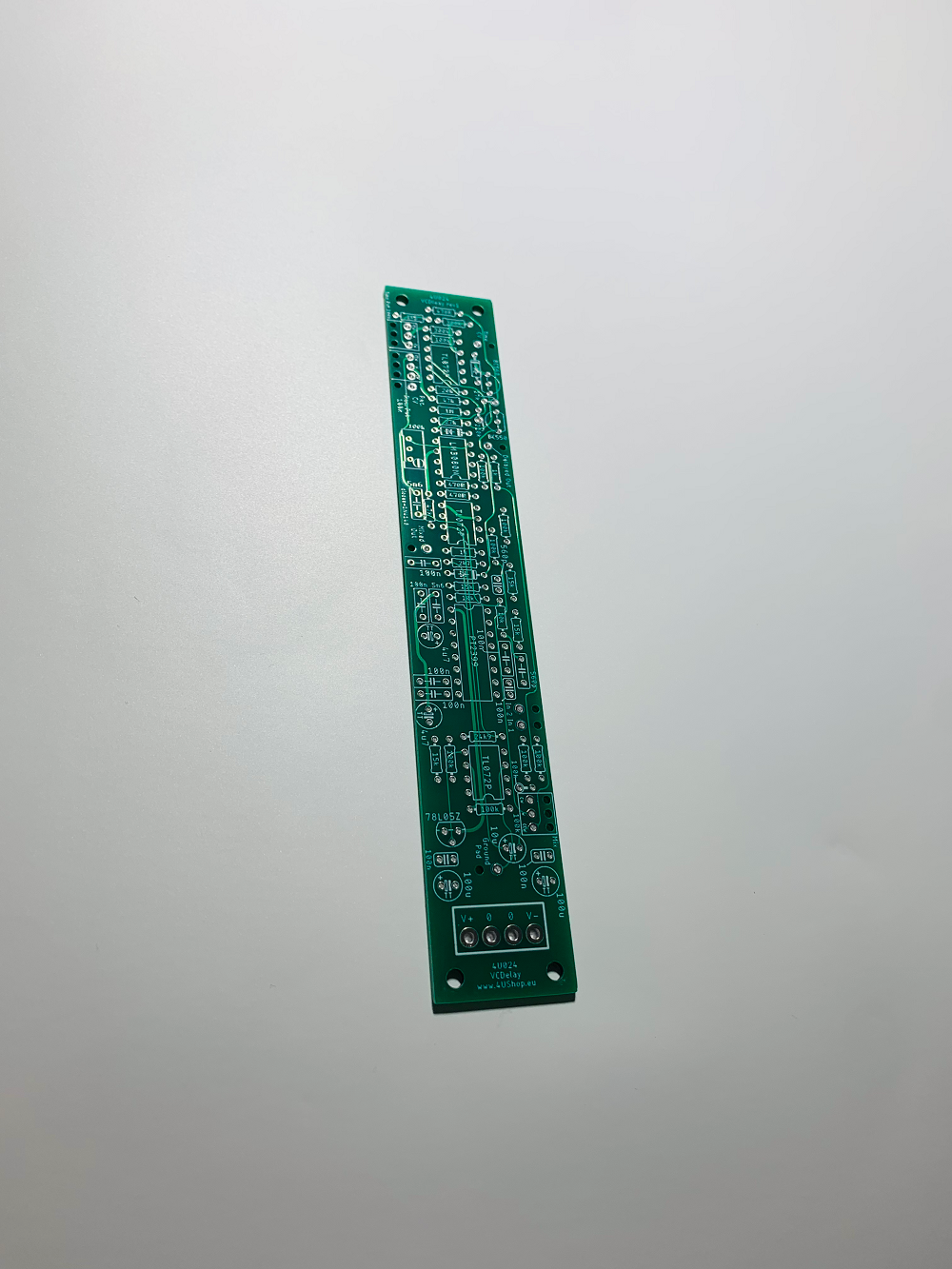

1.6 mm thick, double sided, green
base material FR4-Standard TG 135-140
surface finish HASL
part values are silkscreened

NOTE - check the BC560 pinout with the schematic!
The orientation in the silk may flipped!

no parts, just the PCB - LW format panel is available

Documentation (schematic, bom, wiring)
