4U027 - Euclid

4U027 - Euclid

4U adaptation of an interesting, Arduino Nano based sequencer by Hagiwo.
All credit goes to Hagiwo, no changes here.

Original Hagiwo page
Original Hagiwo Youtube video

The module also can run (without modifications) the 6 channel sequencer
software.

Original Hagiwo page
Original Hagiwo Youtube video

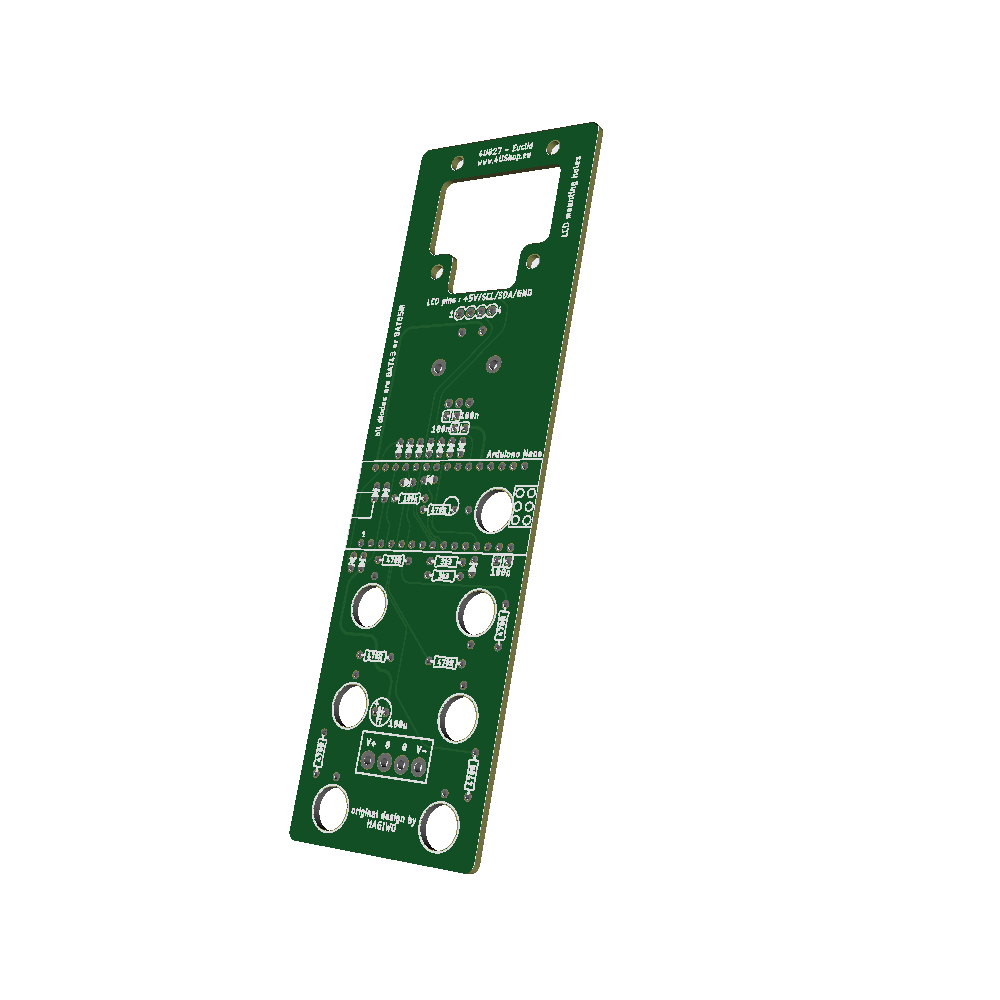

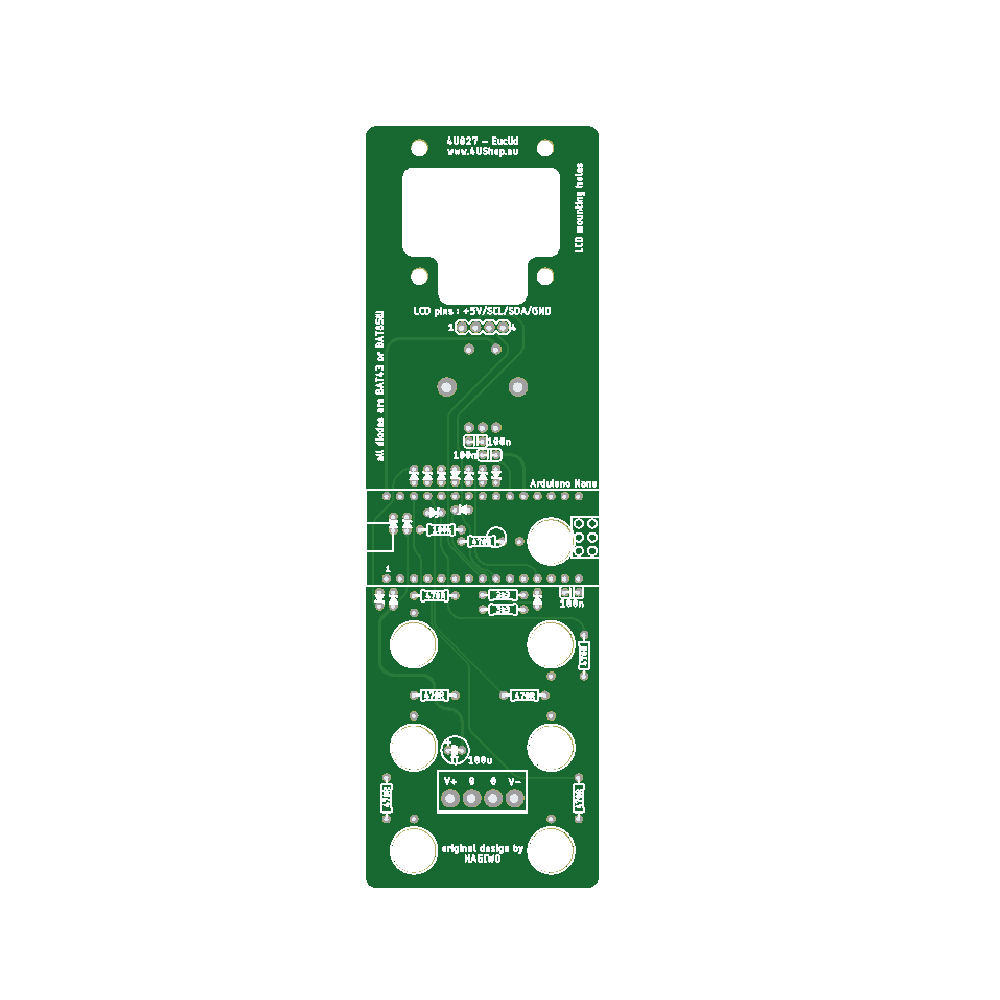

1.6 mm thick, double sided, green
base material FR4-Standard TG 135-140
surface finish HASL
part values are silkscreened

no parts, just the PCB - LW format panel is available

Documentation (schematic, bom, wiring)
Firmware(s)

Note, use the above firmware, we had to re-arrange the output pinouts
to match with the panel!
