4U036 - NTO
4U036 - NTO
Couldn't load pickup availability
4U036 - NTO
From the original 1983 ctalogue;

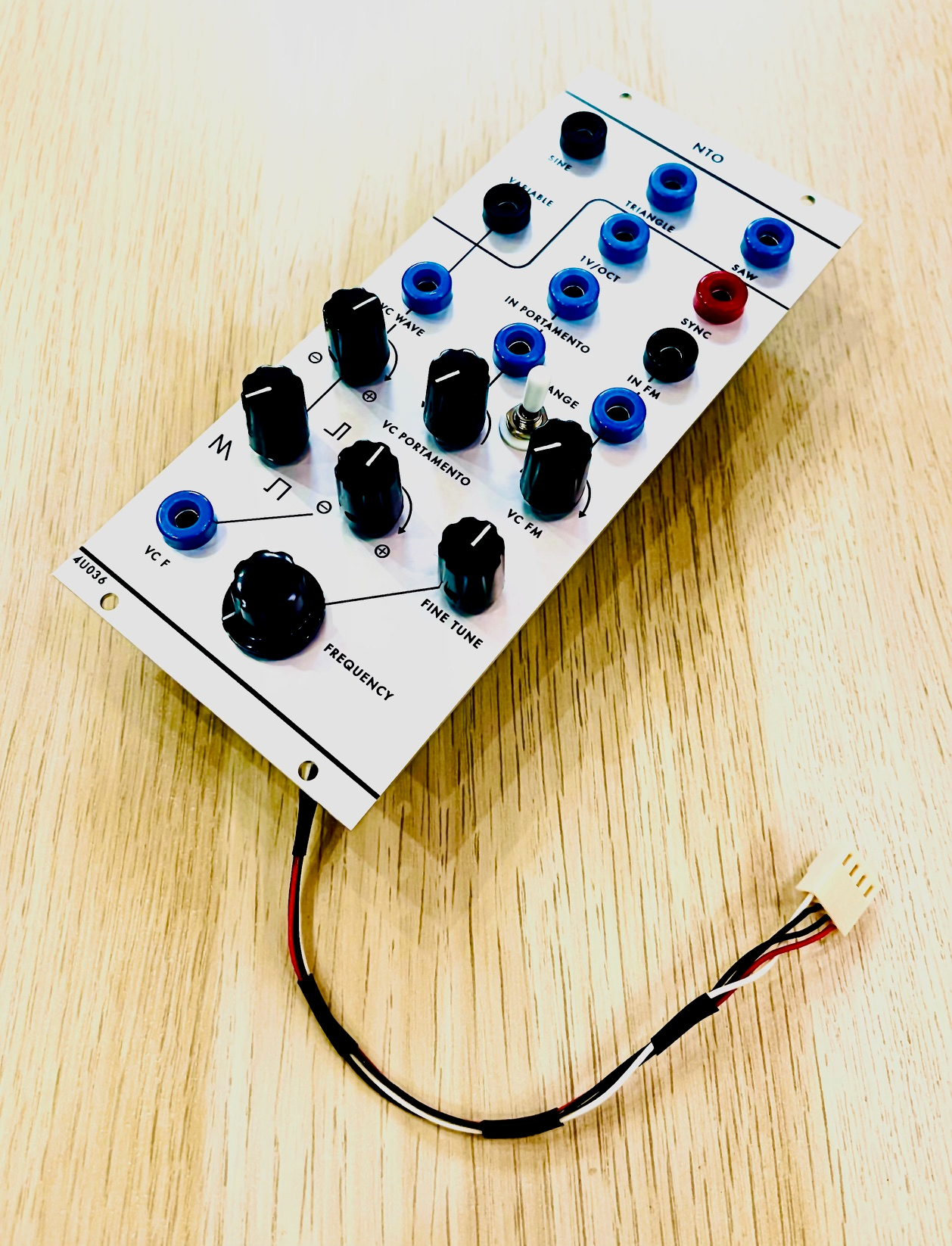

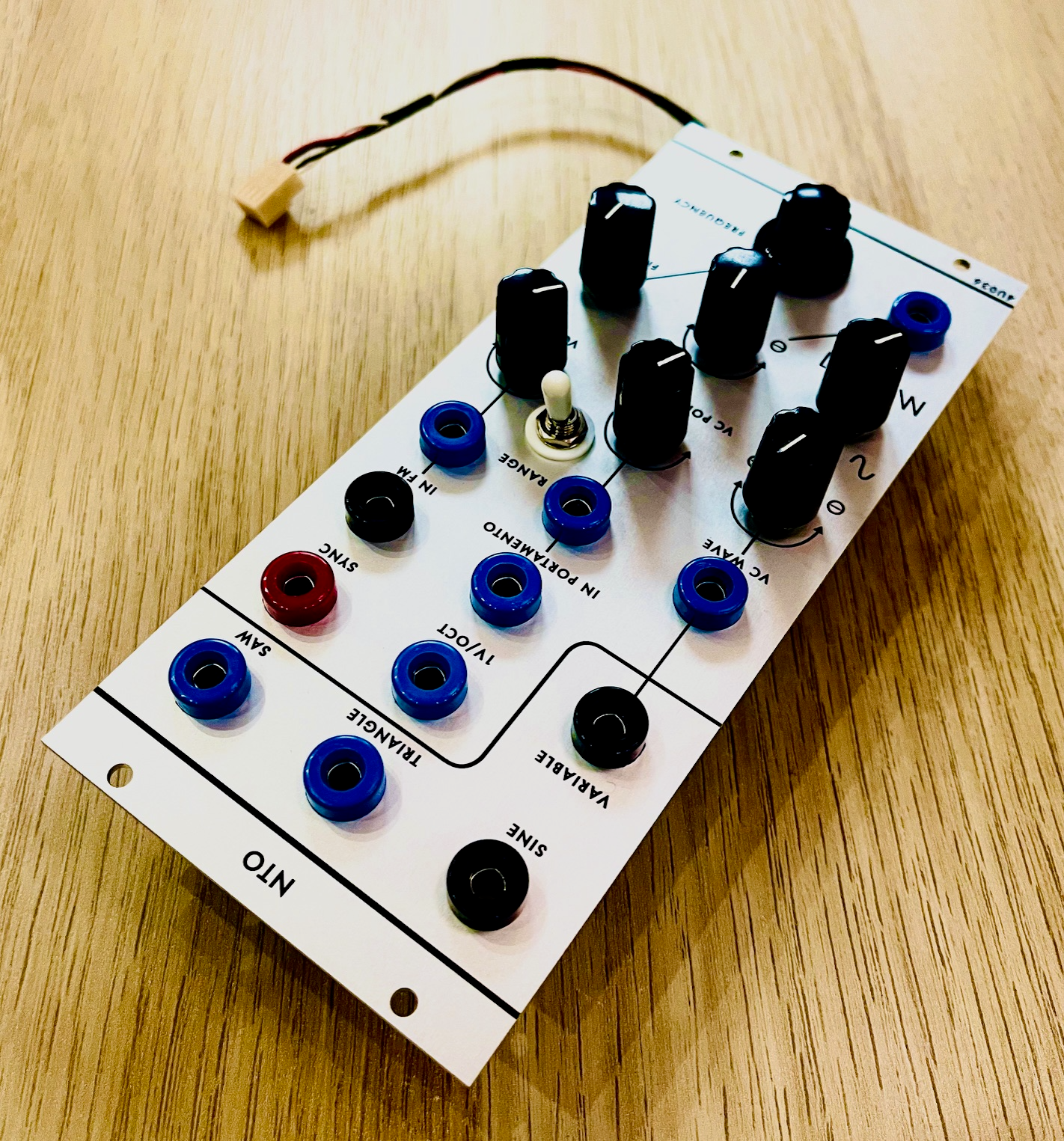

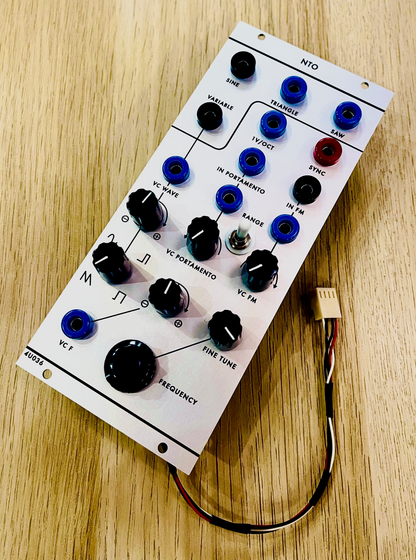

The NEW TIMBRAL OSCILLATOR (NTO) is the
state-of-the-art VCO, featuring exceptional range, superb temperature
stability, and accurate tracking .
Dynamic depth frequency modulation and voltage control of waveform allow unprecedented control over a wide range of sound qualities.
This adaptation is as close to the original as possible, with only a few modifications.
You can build this with LM710 (original) or alternatives - it is up to you.
Note, pretty dense board.
For more info, check the original catalogue!

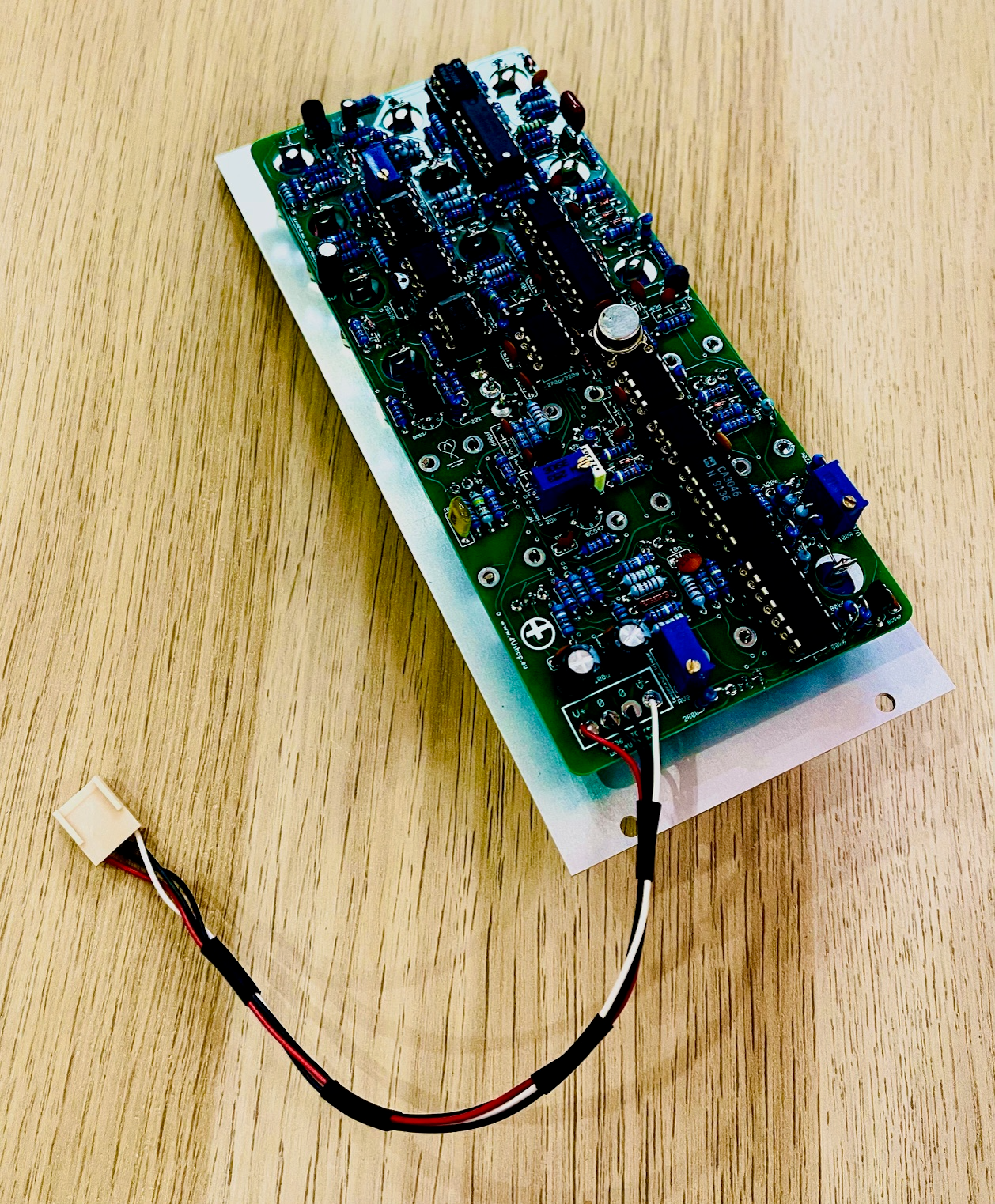

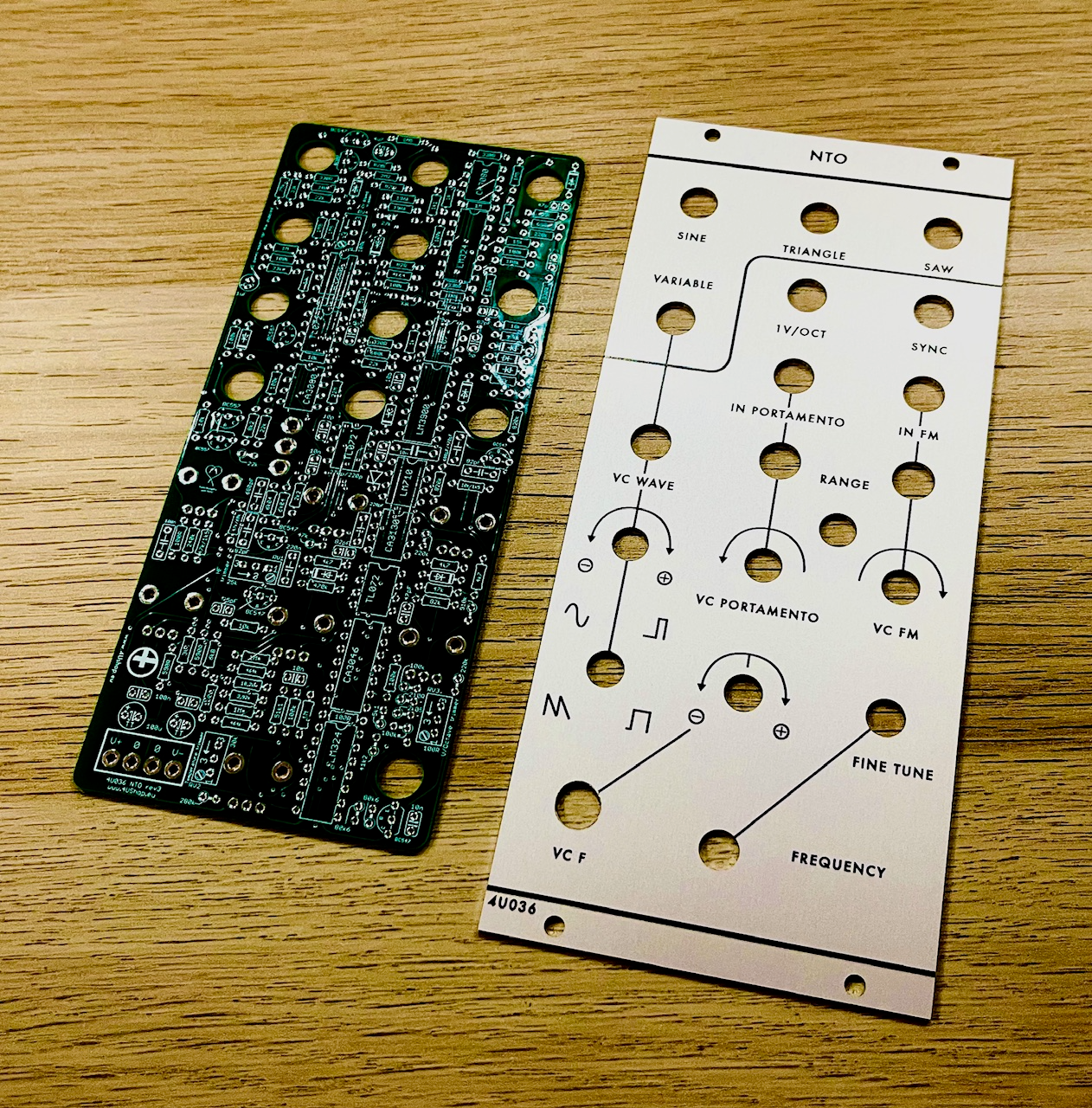

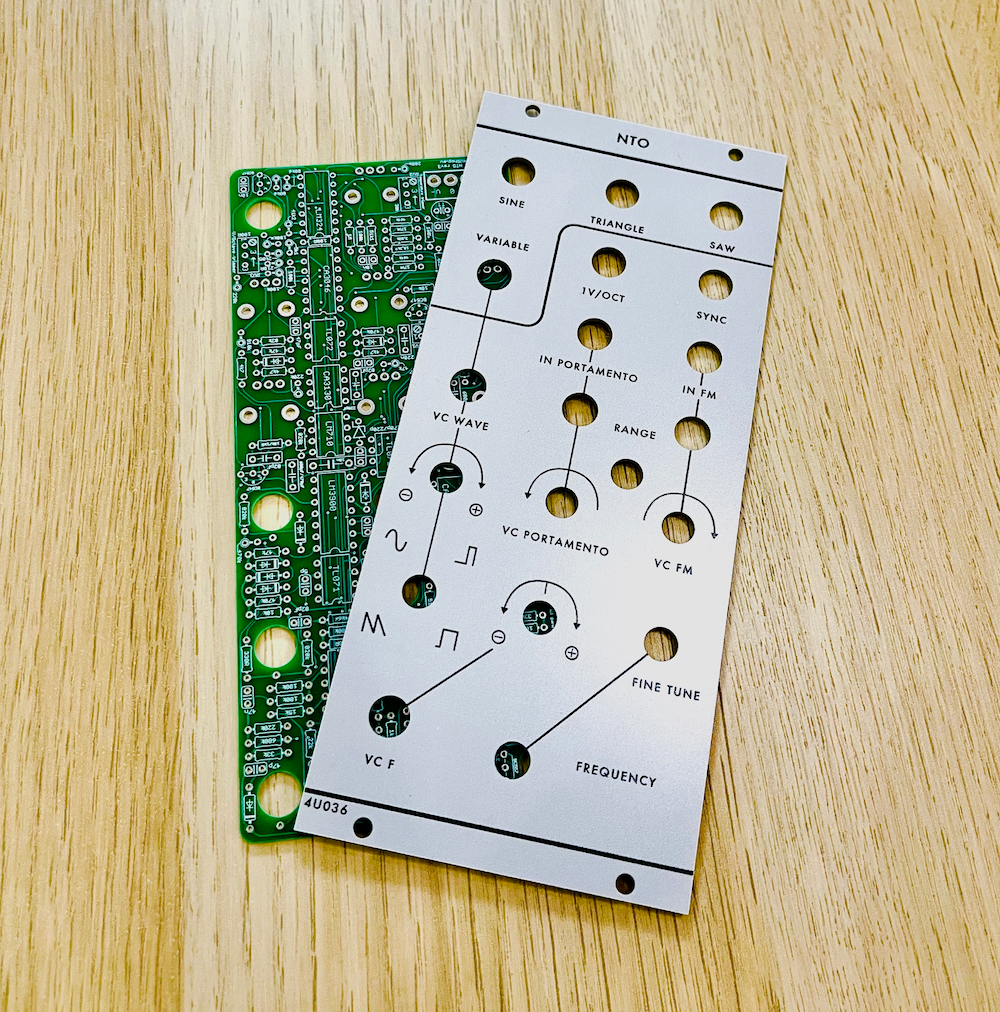

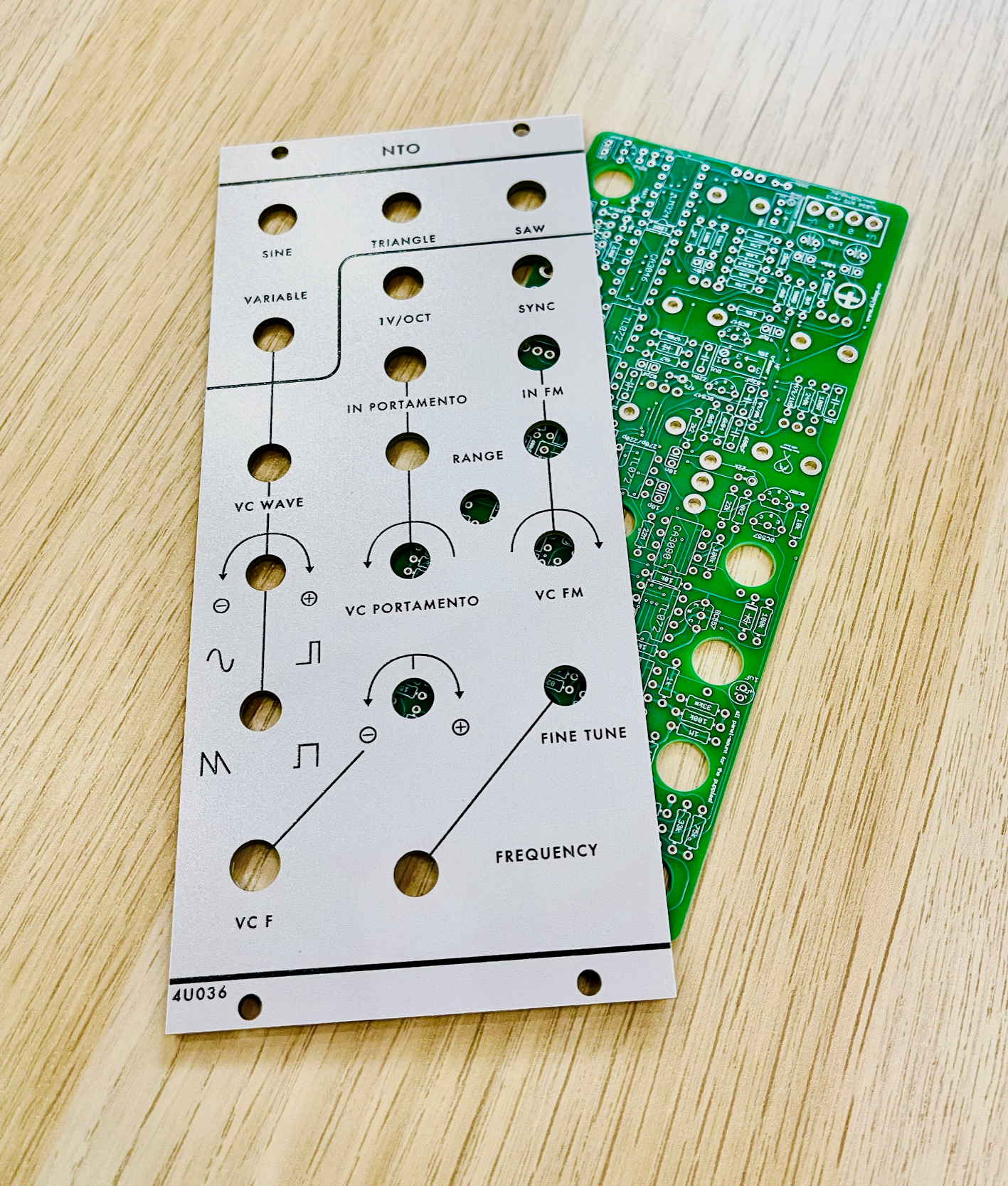

PCB:
1.6 mm thick, double sided, green
base material FR4-Standard TG 135-140
surface finish HASL
part values are silkscreened
all panel mount!

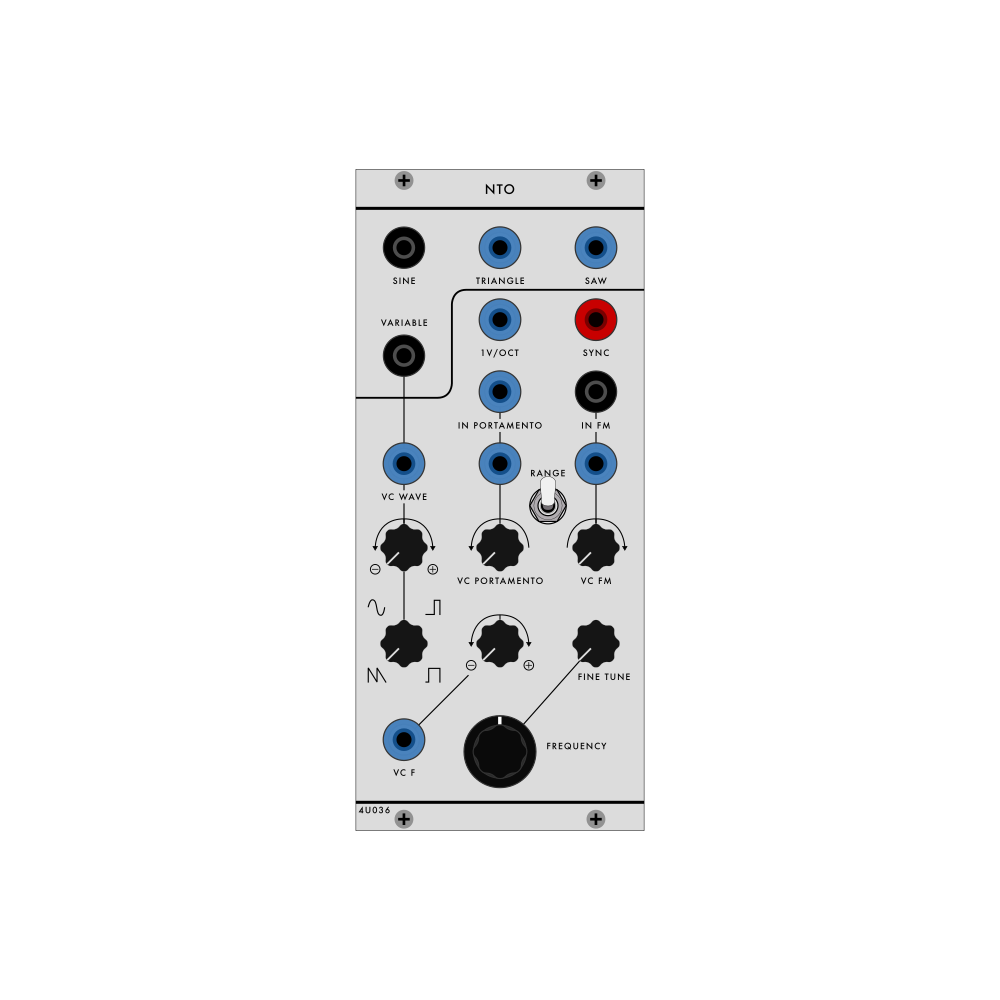

Front panel
1.6 mm thick aluminium
3" x 175 mm
mounting holes - 3.5 mm, follows the LW specification (top and bottom)
no parts, just the PCB and panel
