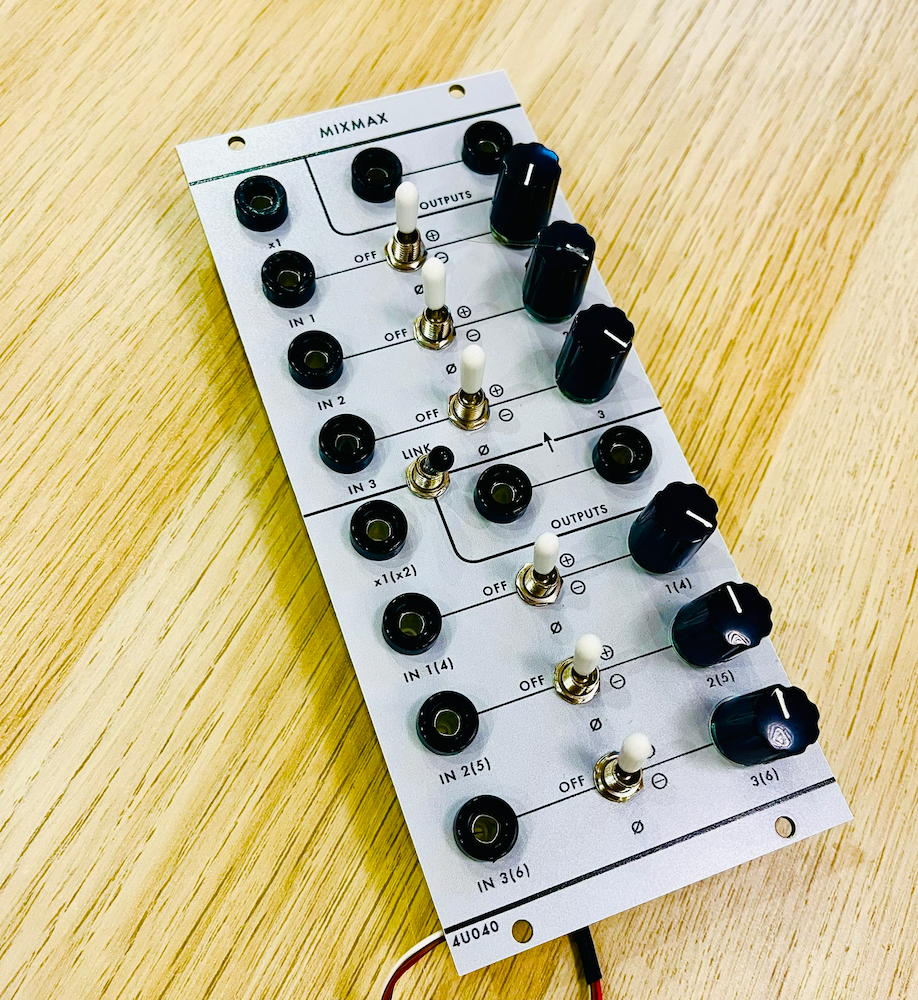

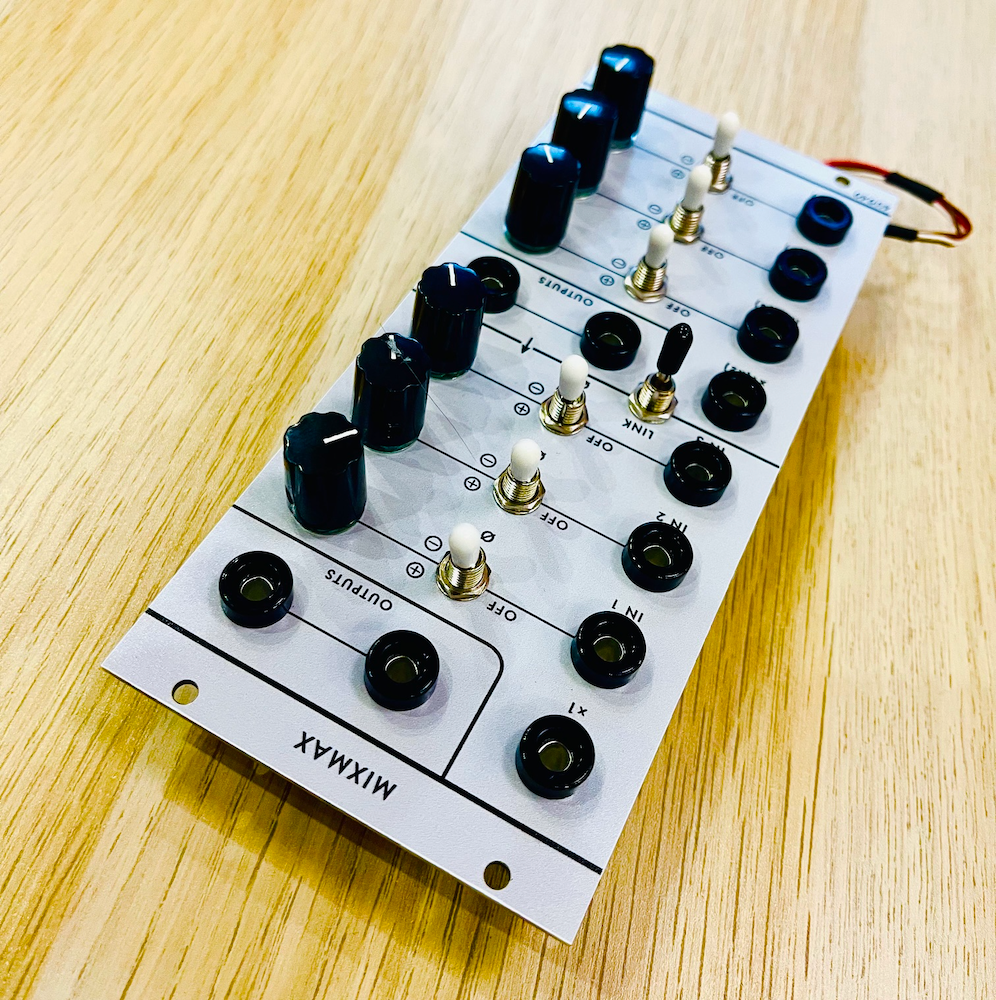

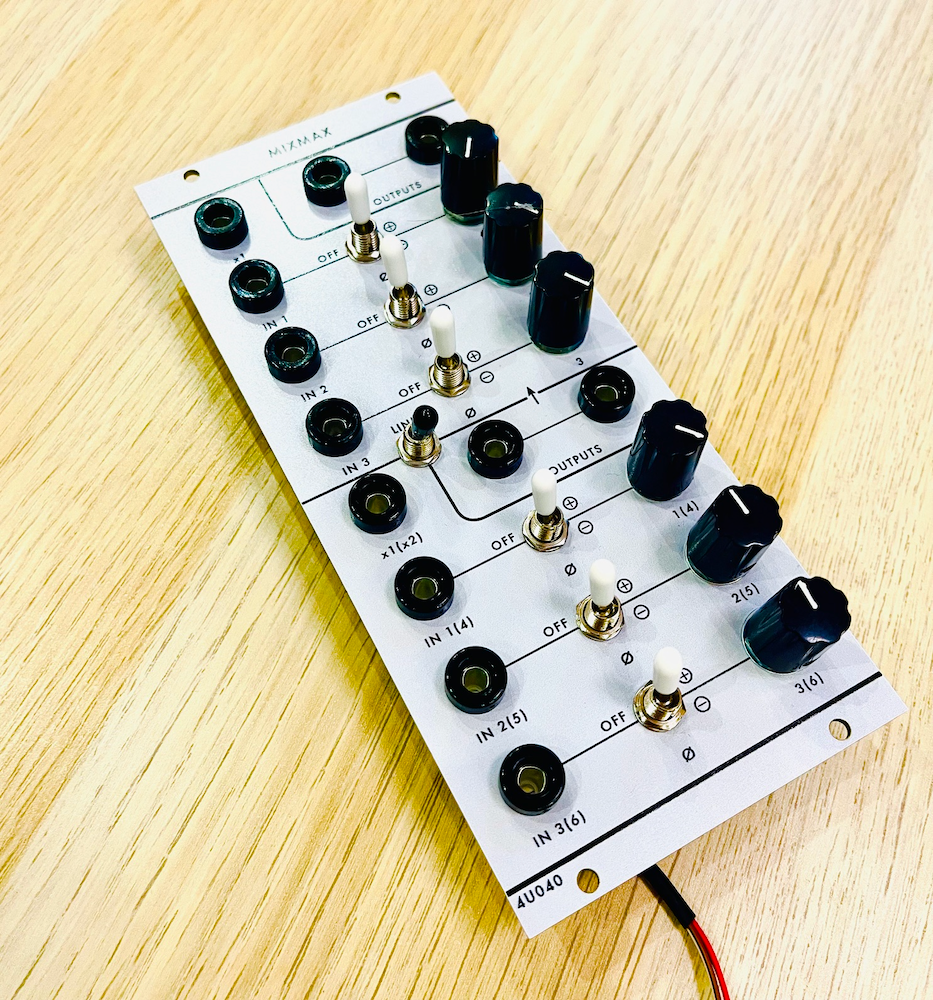

MixMax is based on the well known "DC Mixer" mixer design, by the legendary Ken Stone. This is an extended version, with attenuators and phase/mute switches on every channel.
The top and bottom is linkable, so you can use it as a dual 4 channel mixer or 1 giant 8 channel mixer, where you have access to the bottom section separately.
Also, all panel mount for the puppies, super easy build even for beginners!

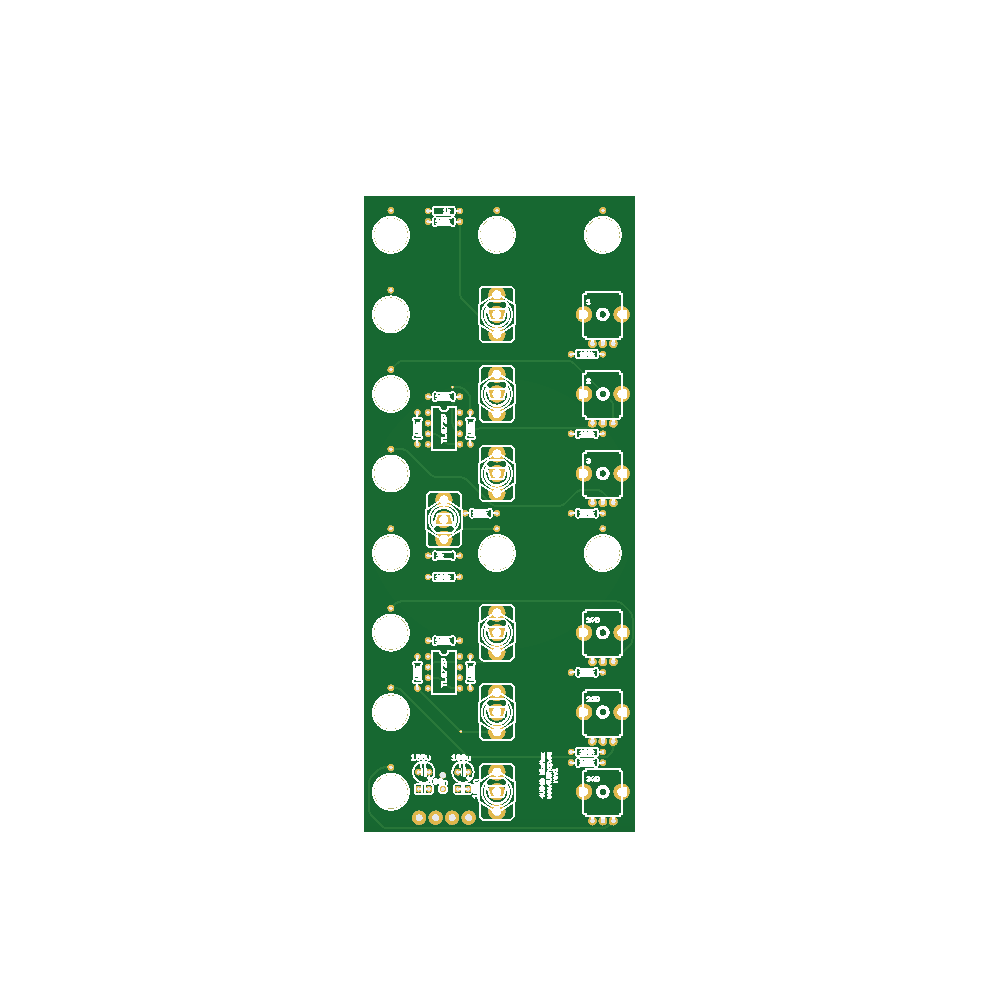

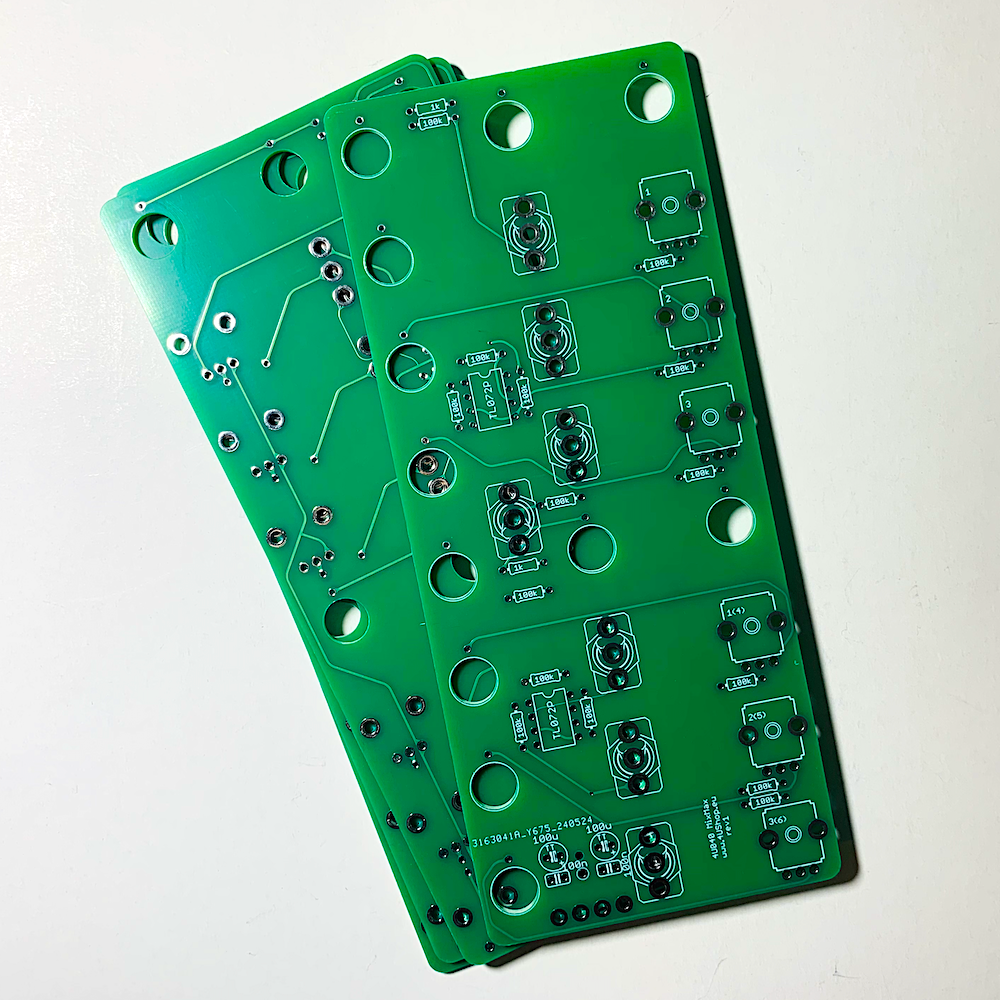

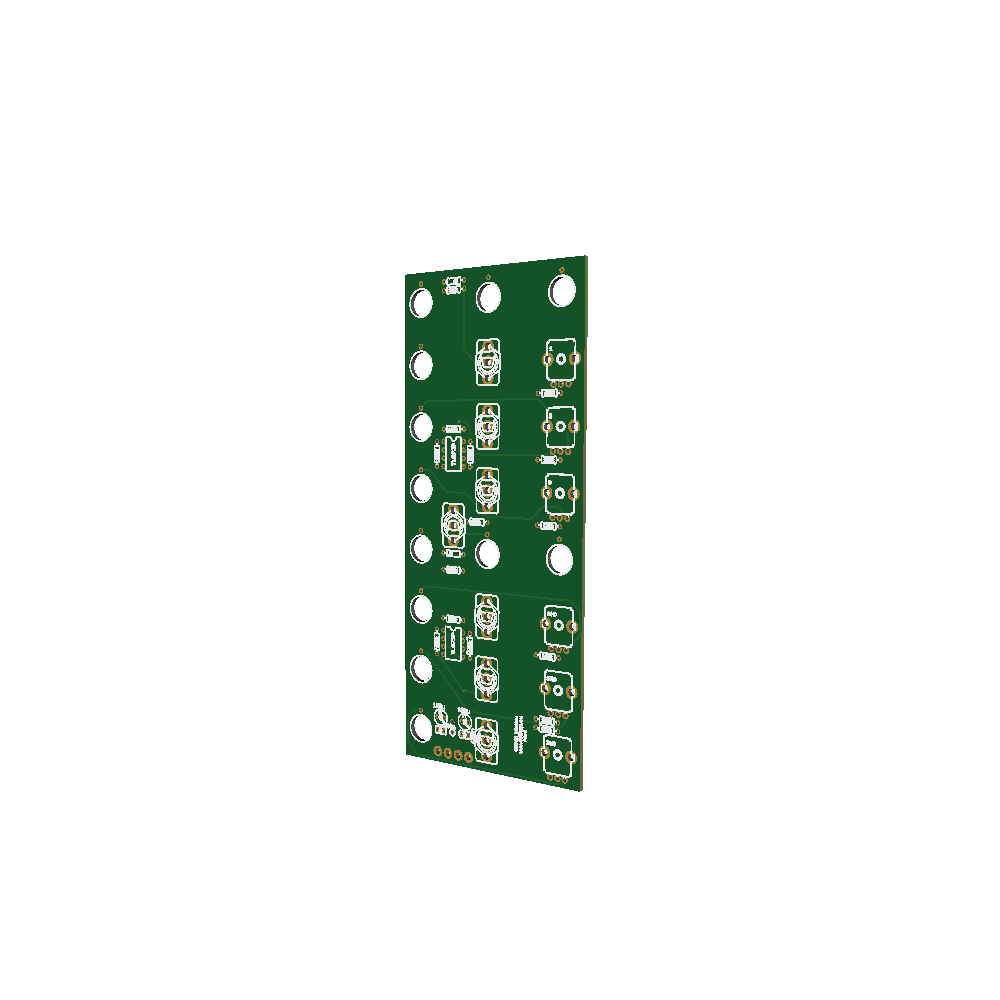

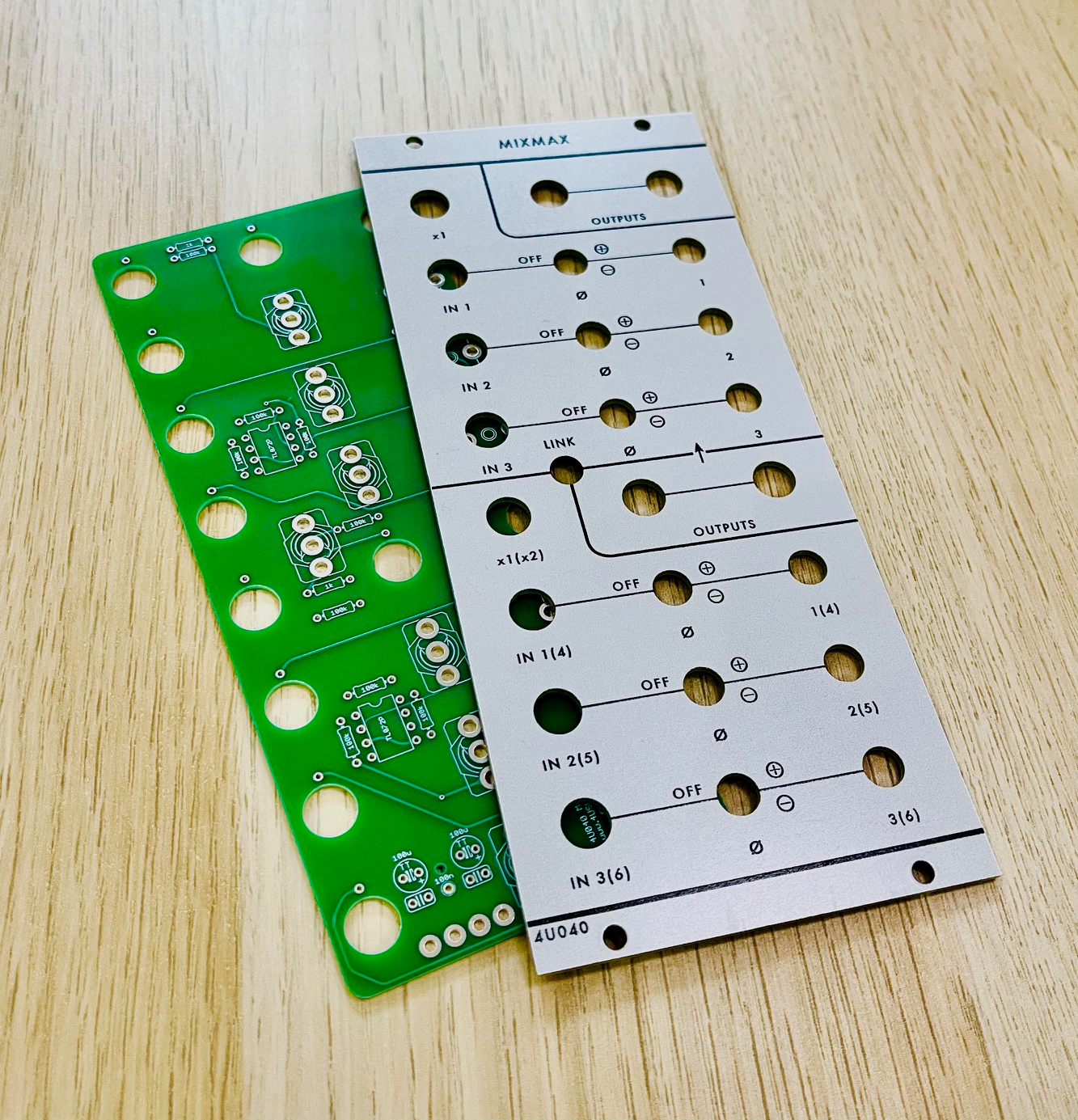

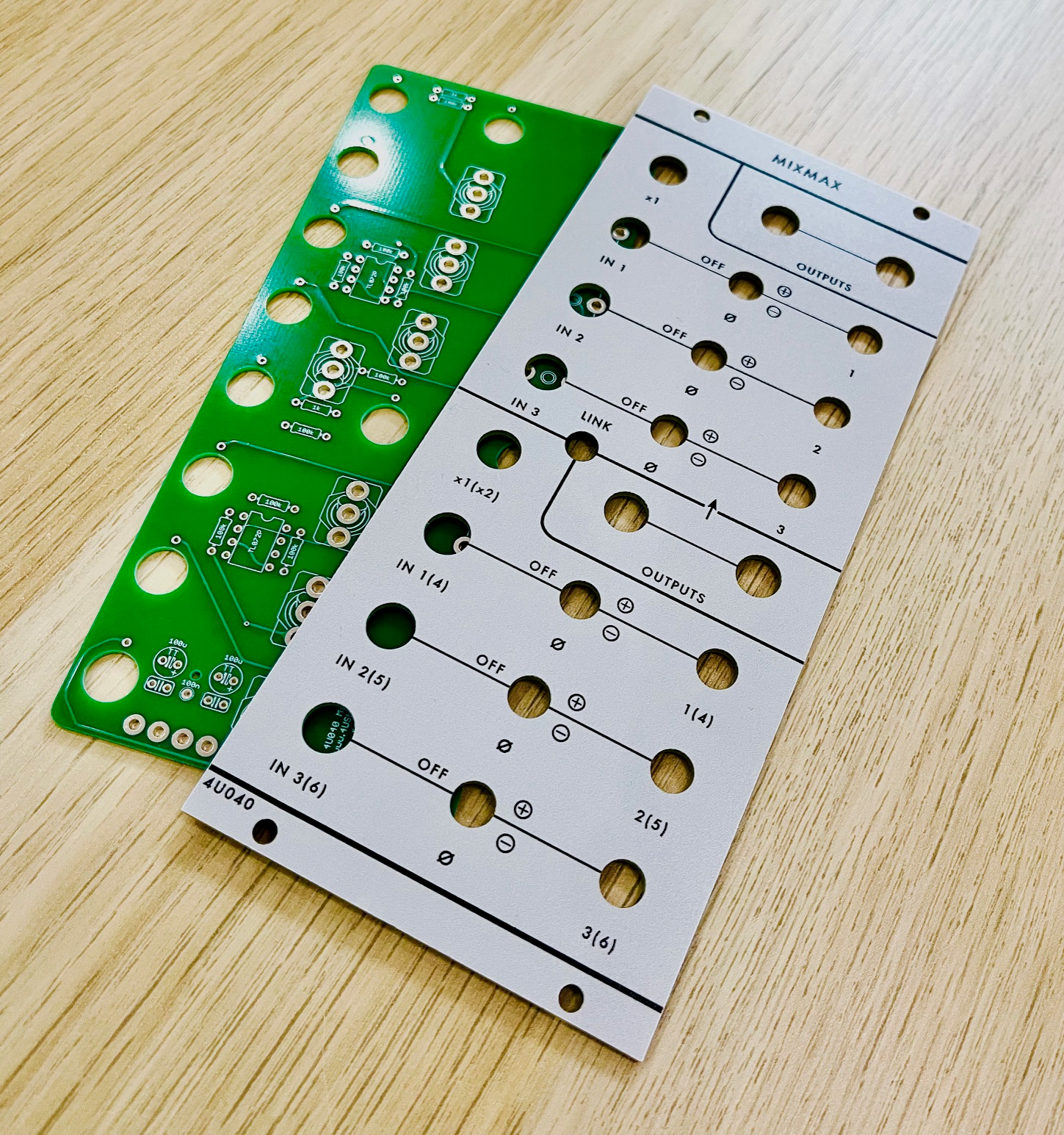

PCB: 1.6 mm thick, double sided, green base material FR4-Standard TG 135-140 surface finish HASL part values are silkscreened all panel mount!

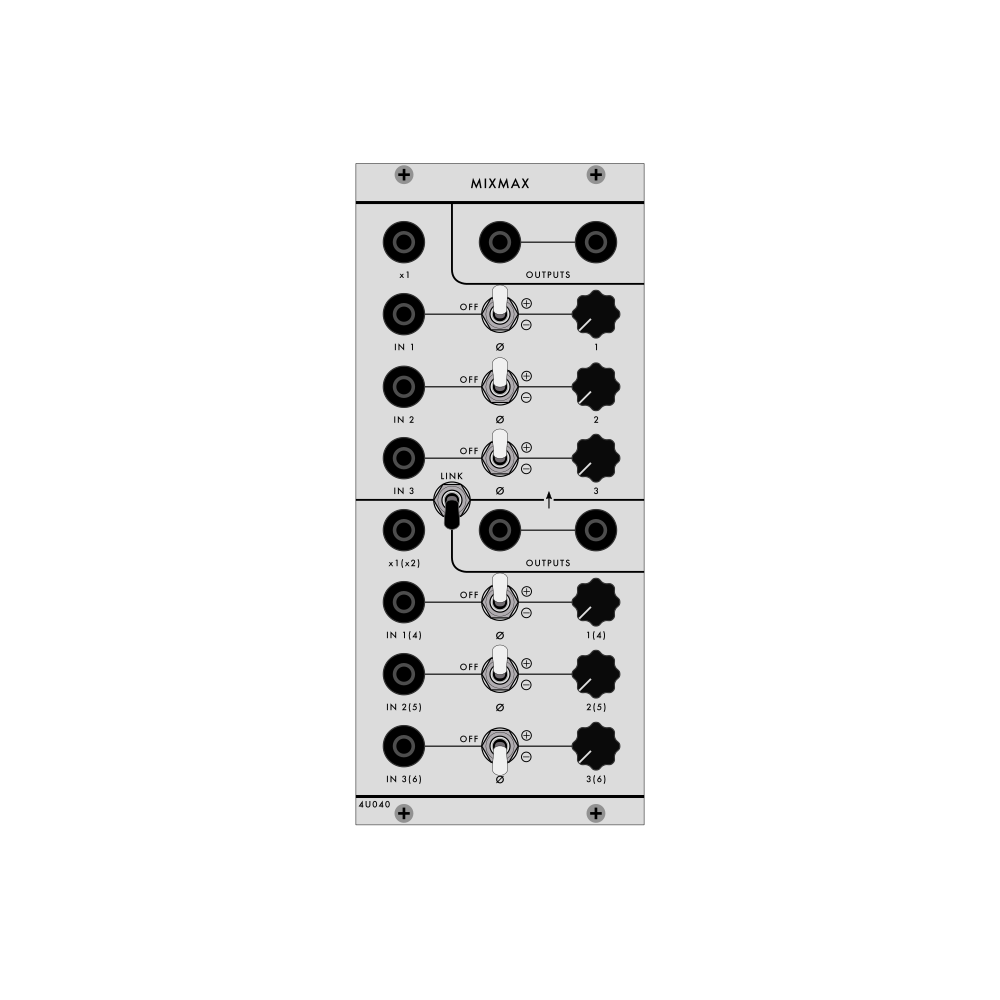

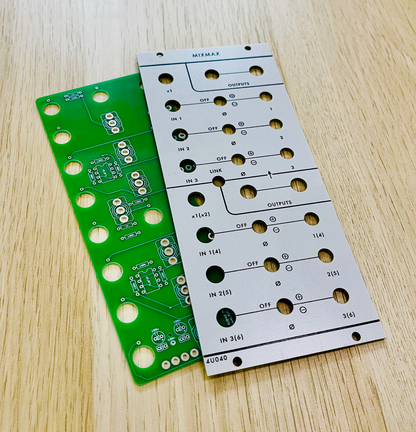

Front panel 1.6 mm, PCB material with colour front print that "mimics aluminium" 3" x 175 mm mounting holes - 3.5 mm, follows the LW specification (top and bottom) please note, minor imperfection may occur no parts, just the PCB and panel
