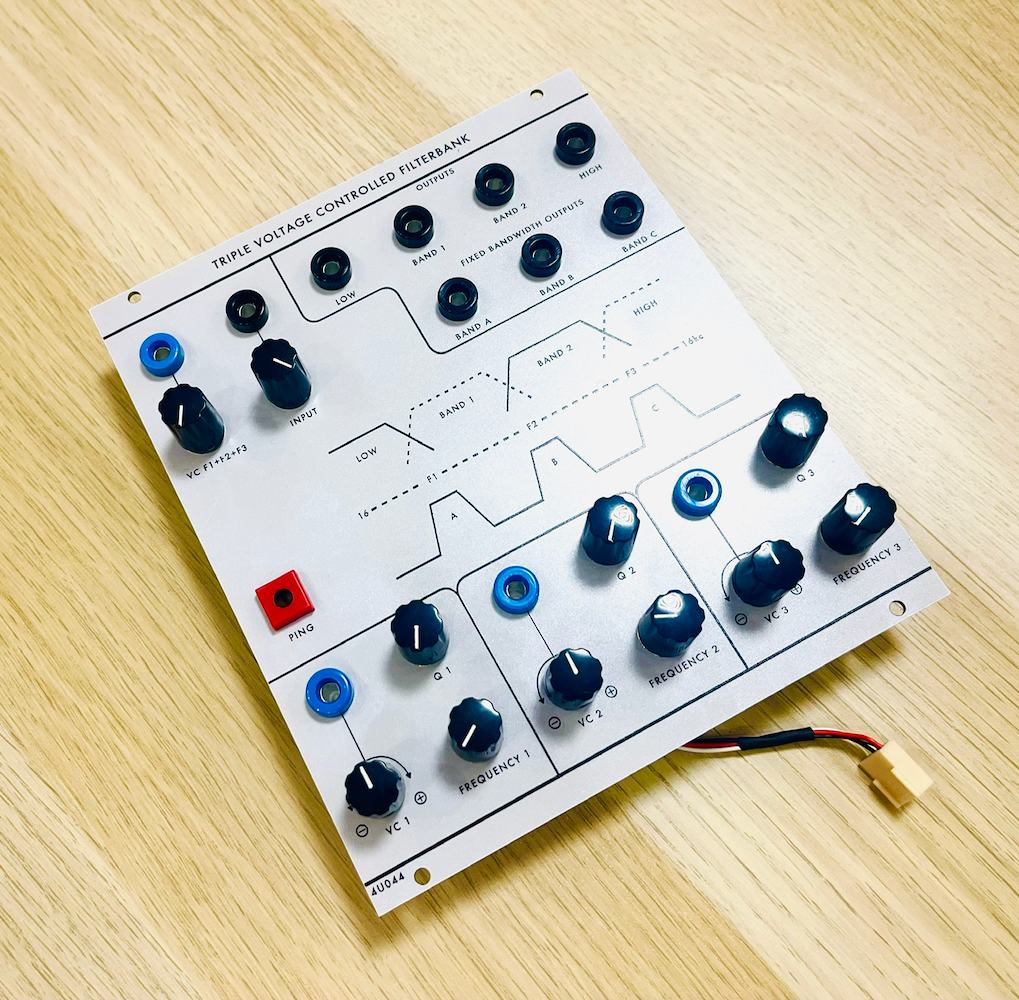

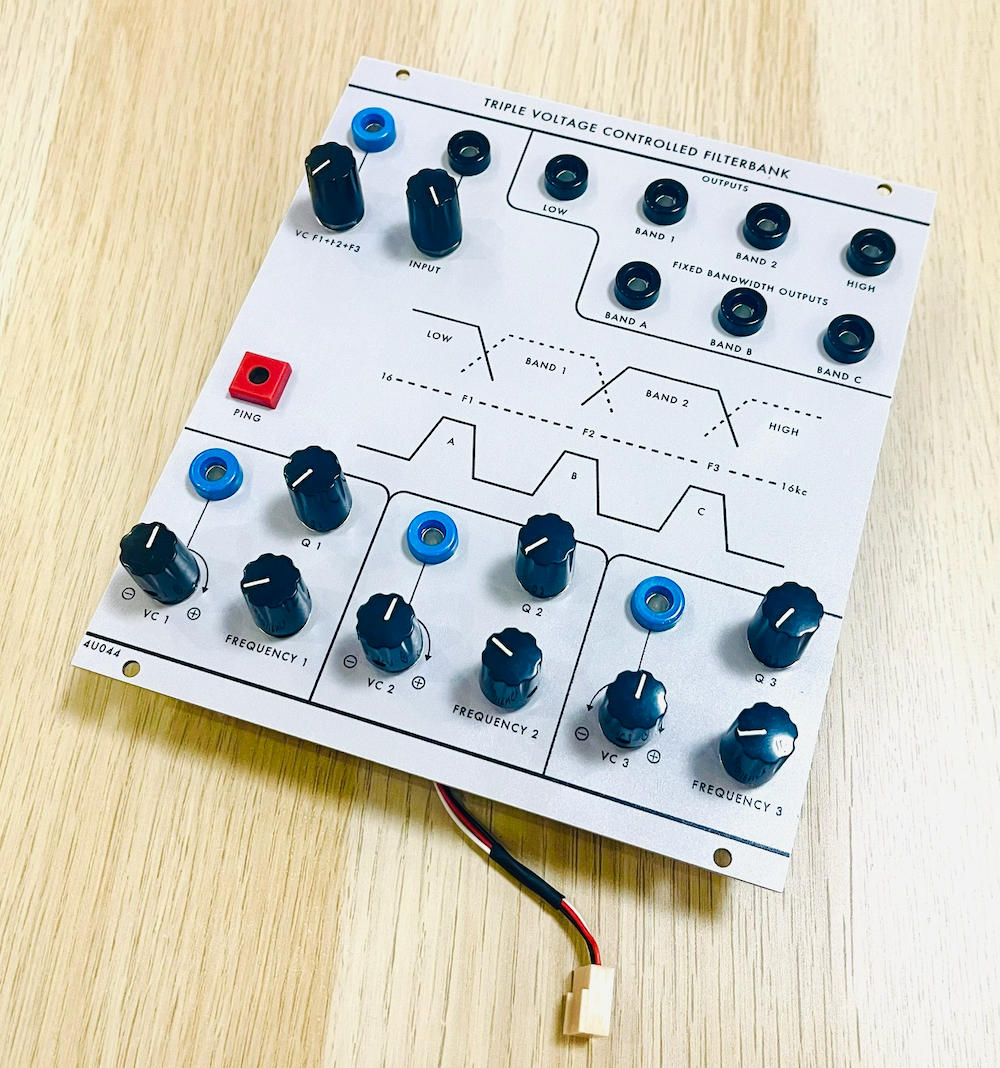

The VCFB, or, Voltage Controlled Filterbank is a very interesting and unique module. From an early catalogue: "Upon special request, three or more filters can be linked to achieve the function of multiple band-pass spectrum filters (equivalent to voltage-control paramteric equalization). Filter banks of thiy type are expectionally versatile because the multiple band-pass functions can be dynamically adjusted around any portions of the audio spectra. A typical filter bank with four filters in series provides three fully adjustable BAND-PASS outputs, plus LOW and HIGH-PASS outputs."
Essentially, the VCFB is 3 classic '73 filters in series, configured to create a beast. It also has all the well know '73 filter mods, like the "trigger" input.

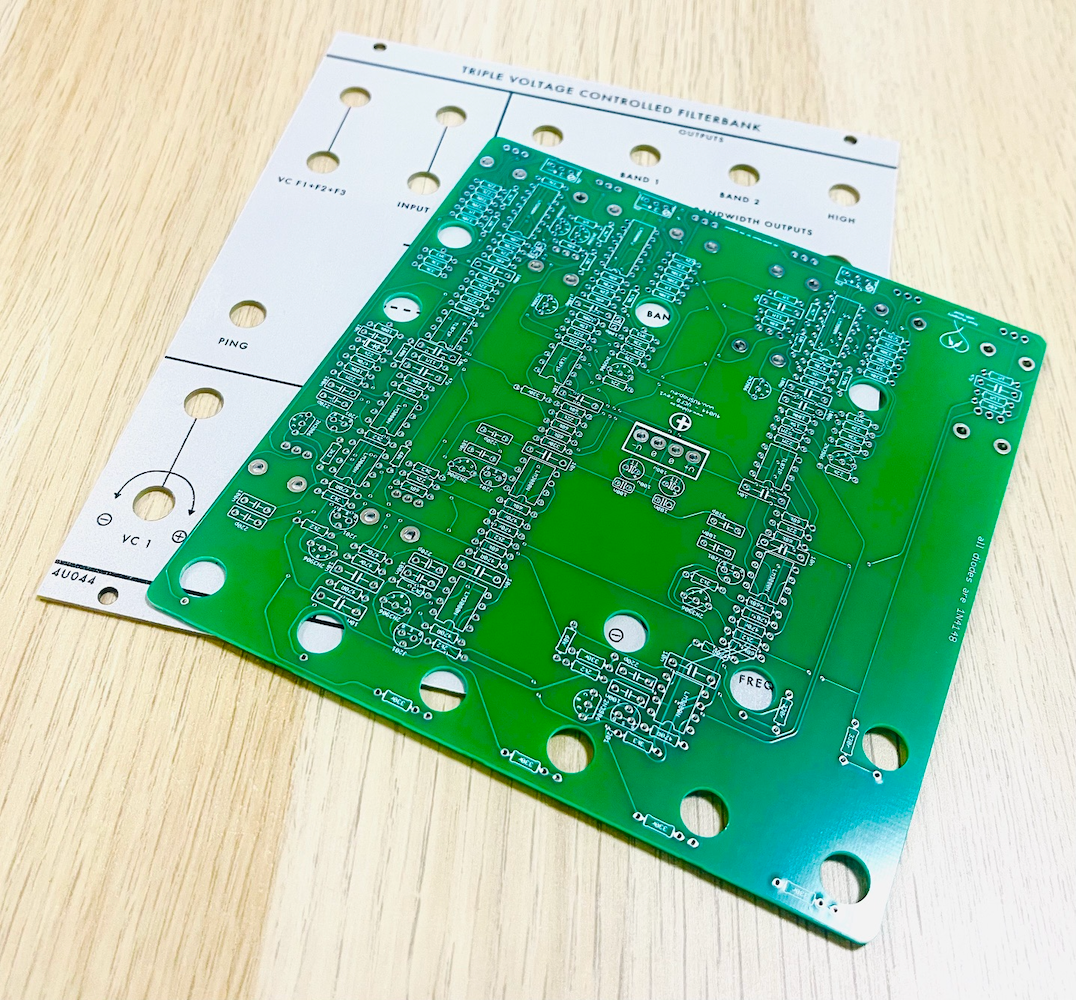

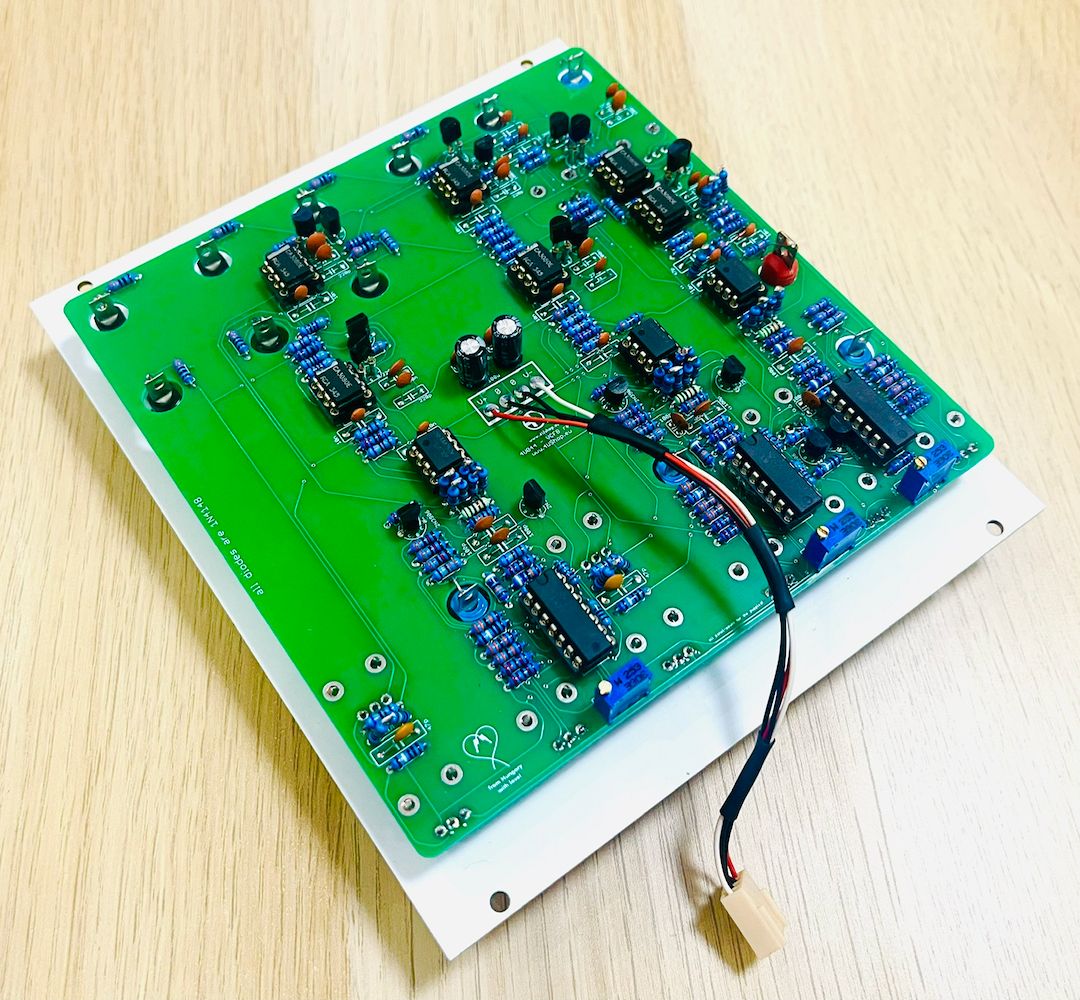

PCB: 1.6 mm thick, double sided, green base material FR4-Standard TG 135-140 surface finish HASL part values are silkscreened all panel mount!

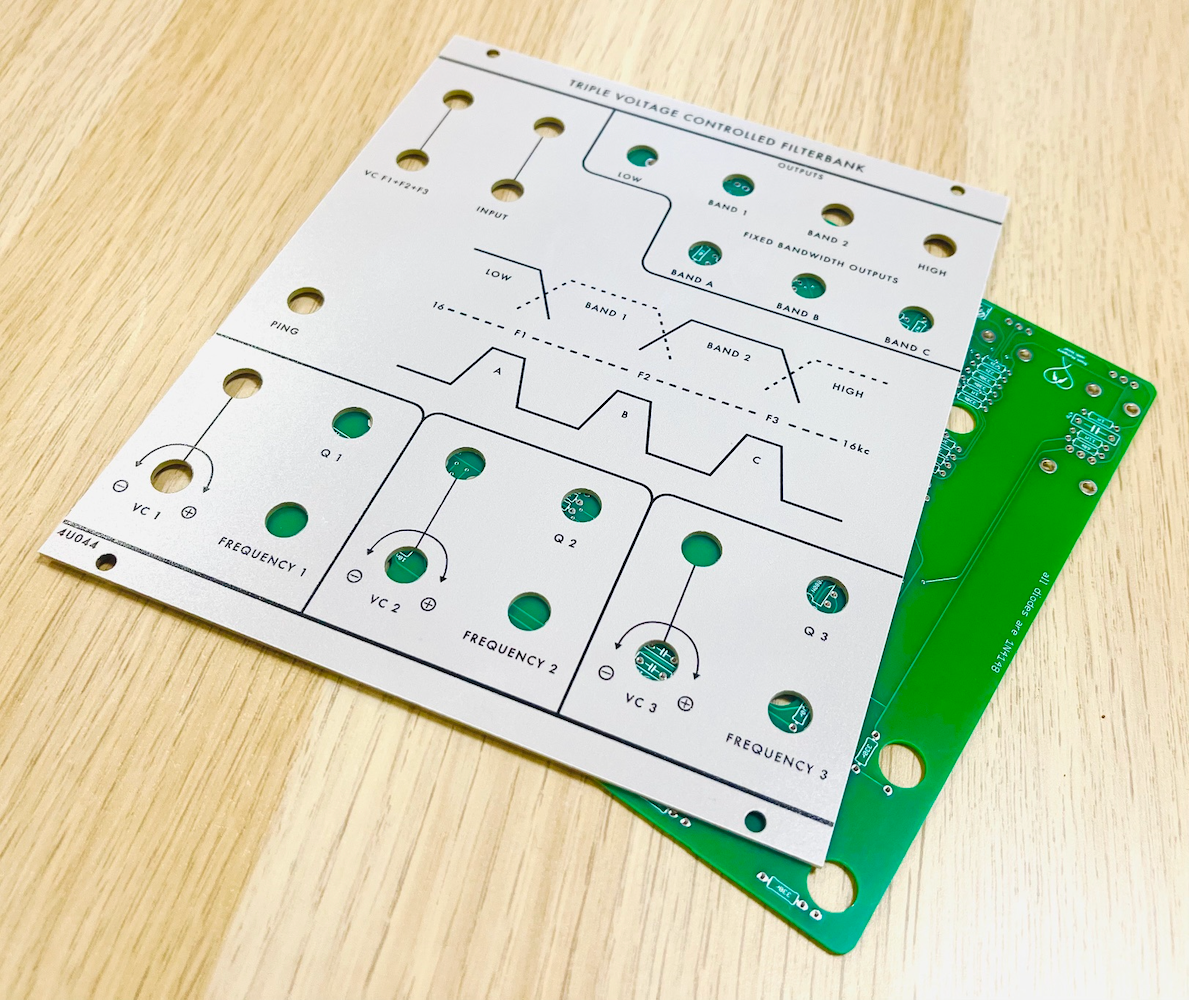

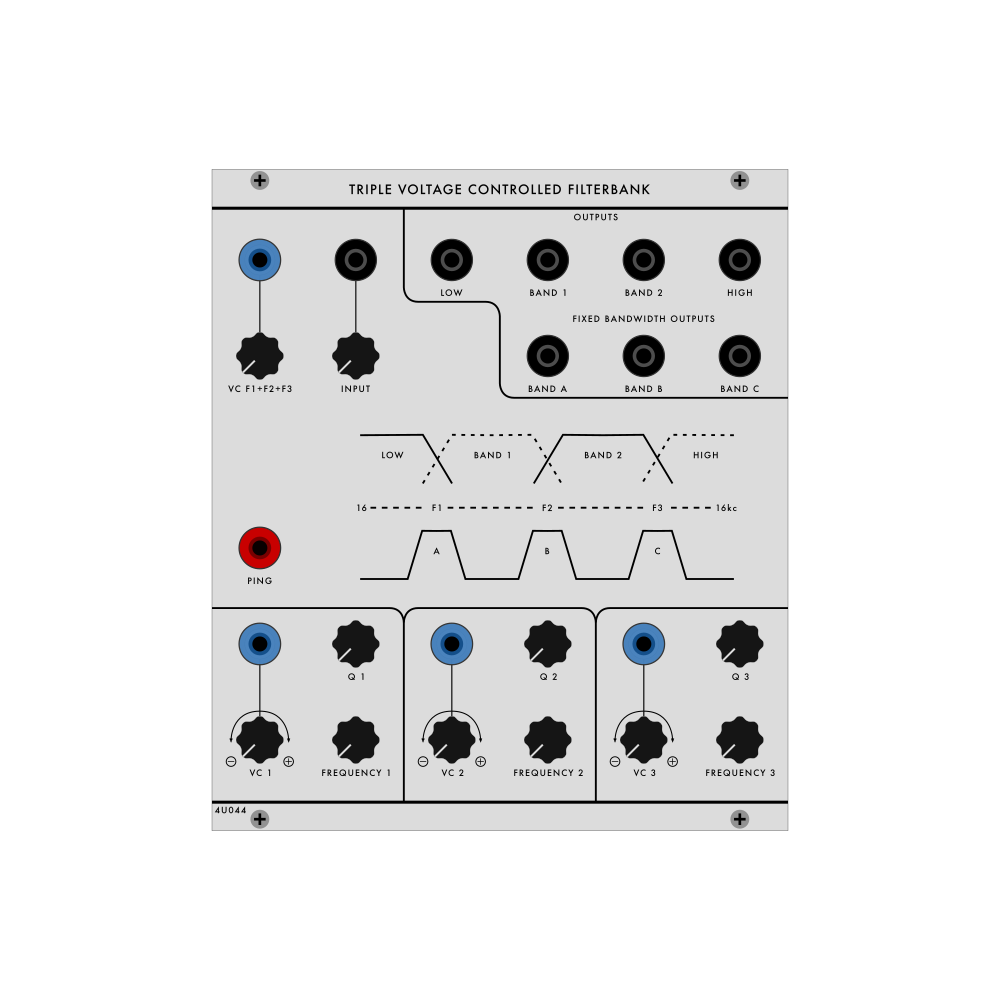

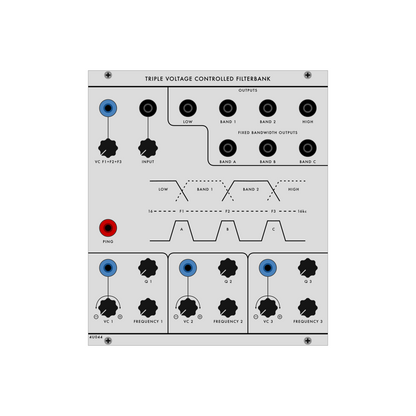

Front panel 1.6 mm, PCB material with colour front print that "mimics aluminium" 6" x 175 mm mounting holes - 3.5 mm, follows the LW specification (top and bottom) please note, minor imperfection may occur no parts, just the PCB and panel
