4U adaptation of an interesting, Arduino Nano based sequencer by Tom Whitwell.
All credit goes to Tom, only minimal changes on the original schematic.

Original thread on Modwiggler
Tom's technical thread on Modwiggler
Sneak-Thief's Github
Clee's page, with Clee's version

1.6 mm thick, double sided, green
base material FR4-Standard TG 135-140
surface finish HASL
part values are silkscreened

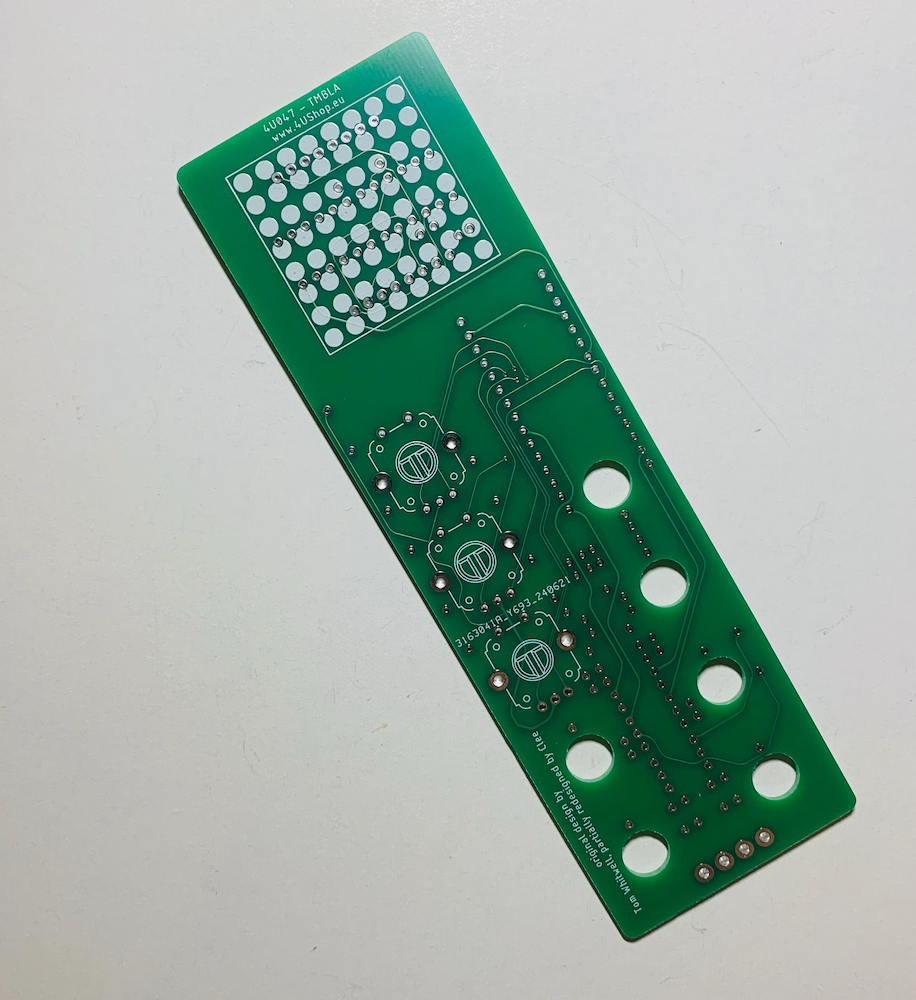

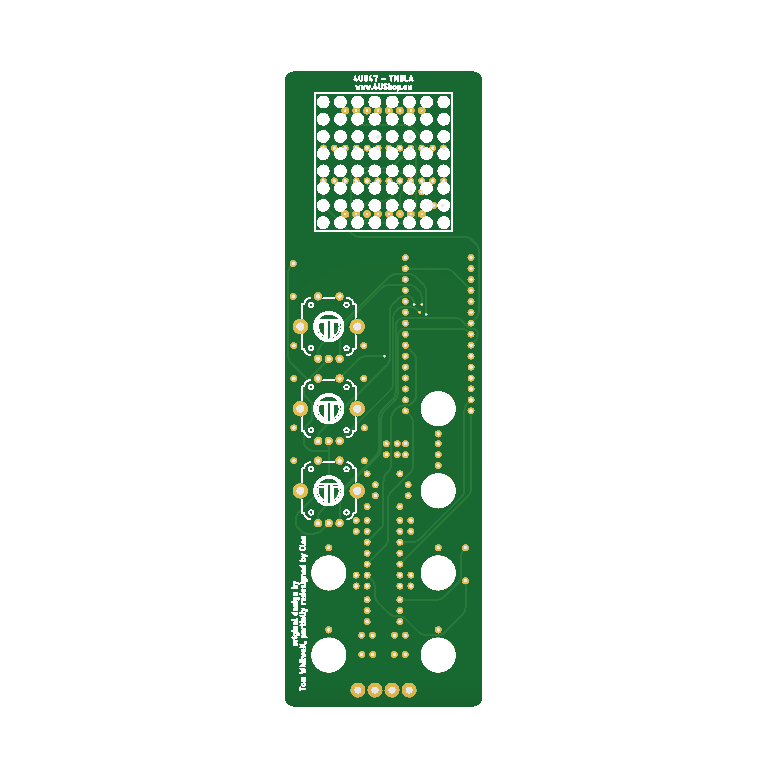

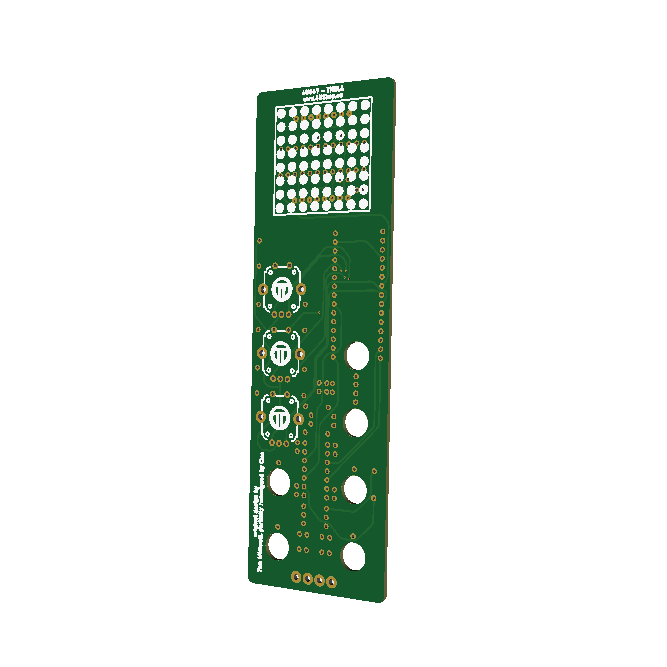

no parts, just the PCB - LW format panel is available

Documentation (schematic, bom, wiring)
Firmware(s)

Note, use the above firmware, we had to re-arrange the output pinouts
to match with the panel!
