Buddy - passive breadboard experimental card for the Music Easel

Buddy - passive breadboard experimental card for the Music Easel

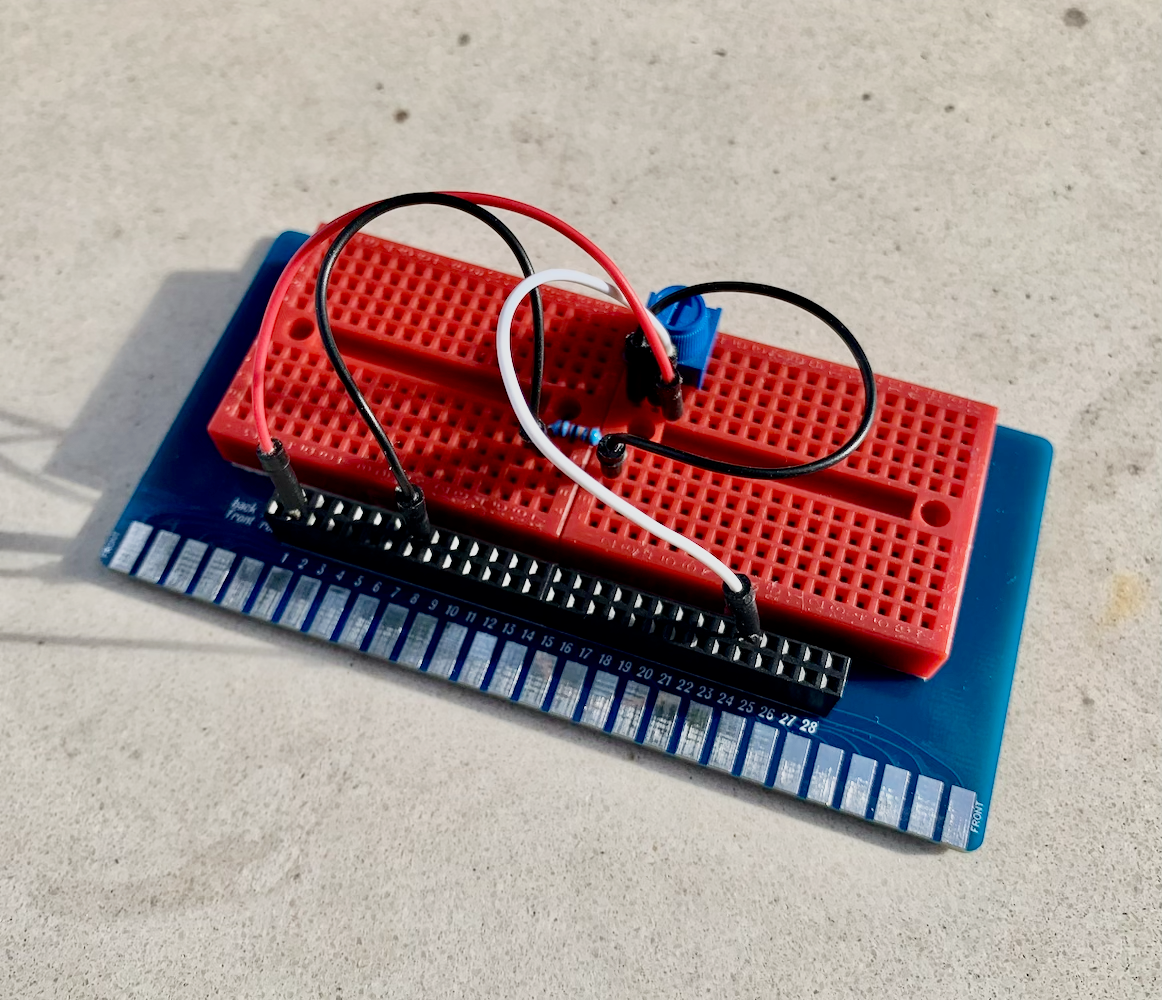

Buddy is a small, fully passive Easel card with 2 cherry-red breadboards on it to make
simple, easy experiments.
Important, the black header gives you direct access to all the card-slot pins (including the power pins)!

Useful stuff to read:
Retro Program card info from Buchla USA
1974 Easel manual by Alan Strange (black and white)
1974 Easel manual by Alan Strange (colour scan)
Music Easel Hacking For Beginners by Tom Whitwell

Features:

- 2x170 point cherry-red breadboards
- all the Easel's card-slot pins are available (56 points)
- front patch points are numbered
- card slot pin description on the back
- compatible with all Easels, except the rev1 DIY clone version - hand-built
- hand-built

In case the card is used wrongly, we are not responsible if the easel breaks.
