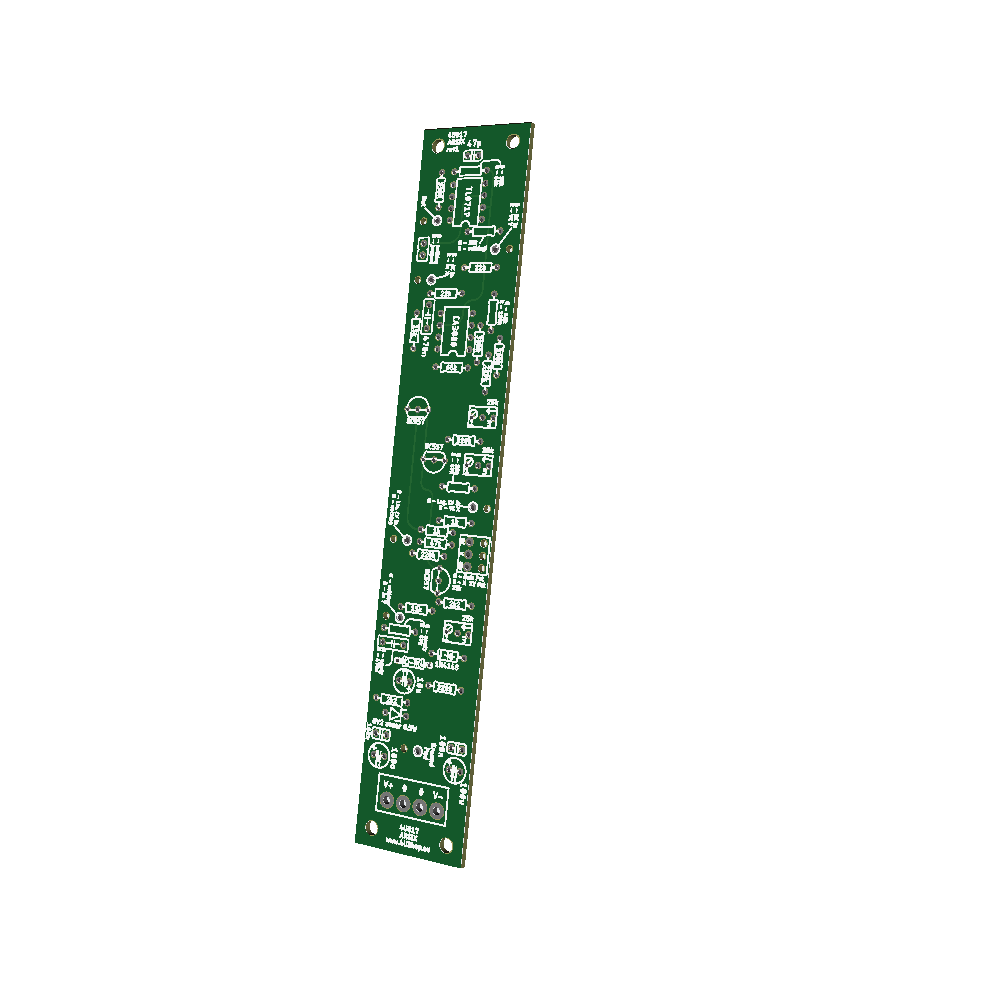

The ARSIX board is based on legendary circuit that could be built as a Gate or as a Ring Modulator - depending on the certain part values (clearly marked on the board).
As a Gate, it can be used as a standard voltage controlled amplifier with either log or linear control voltage characteristics.
The DC coupled input can be used to modulate CV signals to create oddly shaped outputs.
As a Ring Modulator, it features superior audio processing capabilities.
The Ring Modulator offers two VC inputs in addition to the two signal inputs which may be used to perform voltage controlled transitions between full ring modulation and amplitude modulation.

1.6 mm thick, double sided, green
base material FR4-Standard TG 135-140
surface finish HASL
part values are silkscreened

no parts, just the PCB - LW format panel is available

Documentation (schematic, bom, wiring)
